REXROTH OIL CONTROL閥VSPN-12A系列技術參數
Technical data | |
Max. operating pressure port 1 (P) | 420 bar (6000 psi) |
Max. pressure admitted port 2 (T) | 140 bar (2000 psi) |
Flow range | 5 - 200 l/min (1.3 - 53 gpm) |
Max. internal leakage | 350 cm3/min. (21 cu.in./min.) |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 81 - 95 Nm (60 - 70 ft-lbs) |
Weight | 0.2 kg (0.5 lbs) |
Cavity | CA-12A-2N |
Seal kit | Code: RG12A2010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |

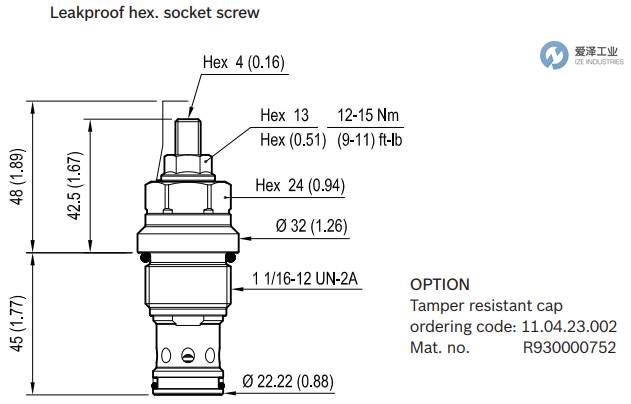

REXROTH OIL CONTROL閥VSPN-12A系列技術尺寸

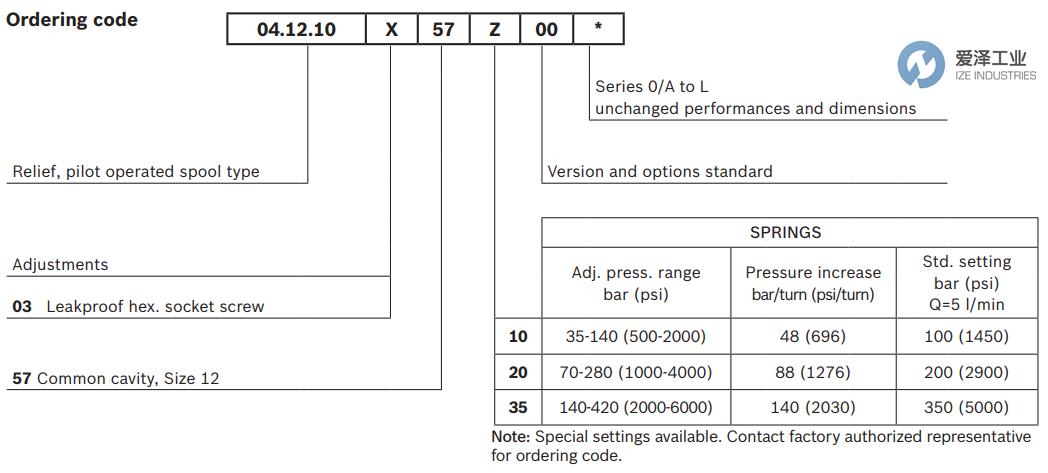

REXROTH OIL CONTROL閥VSPN-12A系列選型
REXROTH OIL CONTROL閥VSPN-12A系列其他常用型號：
REXROTH OIL CONTROL 041210035710000 R930000334
REXROTH OIL CONTROL 041208038520000 R901097722
REXROTH OIL CONTROL 041208038535000 R901104103
REXROTH OIL CONTROL 041208048535000 R901104104
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥041210035710000 R930000334的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥041210035710000 R930000334技術參數及選型
