REXROTH閥DBETX系列技術參數
General | |
Construction | Spool valve |
Actuation | Proportional solenoid without position control, external amplifier |
Connection type | Subplate, mounting hole configuration NG6 (ISO 4401-03-02-0-94) |
Mounting position | Optional |
Ambient temperature range | –20...+50°C |
Weight | 1.9 kg |
Vibration resistance, test condition | Max. 25 g, shaken in 3 dimensions (24 h) |
Hydraulic (measured with HLP 46, oil = 40 °C ±5 °C) | |
Viscosity range | recommended 20...100 mm2/s |
Pressure fluid | Hydraulic oil to DIN 51524...535, other fluids after prior consultation |
Pressure fluid temperature range | –20...+80°C |
Electrical | |
Cyclic duration factor | 100 |
Degree of protection | IP 65 to DIN 40050 and IEC 14434/5 |
Solenoid connection | Unit plug DIN 43650/ISO 4400, M16x1.5 (2P+PE) |

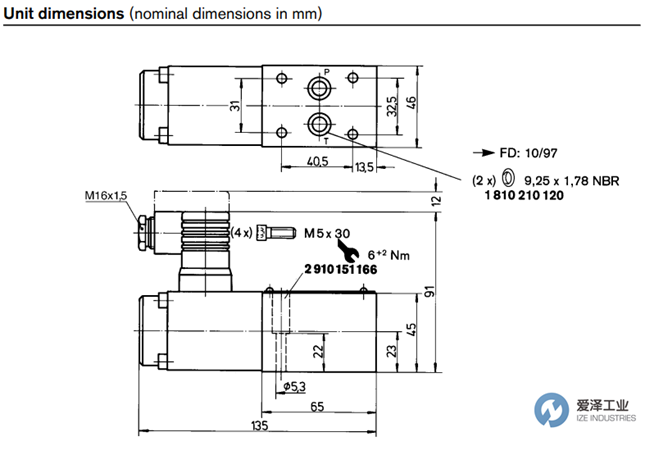

REXROTH閥DBETX系列技術尺寸

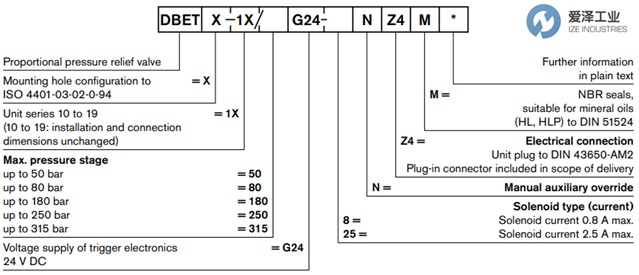

REXROTH閥DBETX系列選型
REXROTH閥DBETX系列其他常用型號：
REXROTH DBETX-1X/315G24-25NZ4M 0811402032
REXROTH DBETX-1X/50G24-8NZ4M 0811402036
REXROTH DBETX-1X/80G24- 8NZ4M 0811402018
REXROTH DBETX-1X/180G24-8NZ4M 0811402017
REXROTH DBETX-1X/250G24-8NZ4M 0811402019
REXROTH DBETX-1X/315G24-8NZ4M 0811402016
REXROTH DBETX-1X/50G24-25NZ4M 0811402034
REXROTH DBETX-1X/80G24-25NZ4M 0811402030
REXROTH DBETX-1X/180G24-25NZ4M 0811402031
REXROTH DBETX-1X/250G24-25NZ4M 0811402035
REXROTH Valves NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥DBETX-1X/315G24-25NZ4M 0811402032的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH閥DBETX-1X/315G24-25NZ4M 0811402032技術參數及選型
