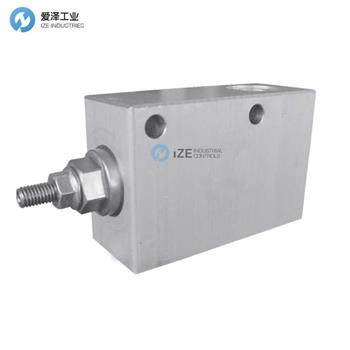

REXROTH OIL CONTROL閥VRP-R系列技術參數
Technical data | |
Max. operating pressure | 210 bar (3000 psi) |
Max. flow | 20 l/min. (5 gpm) |
Max. leakage: | 10 cc/min. (0.6 in3/min.) at 90% of pressure setting |
Weight | 0.85 kg (1.87 lbs) |
Manifold material | Aluminium |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | -30 °C to 100 (-22 to 212 °F) |
Viscosity range | 5 to 800 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |

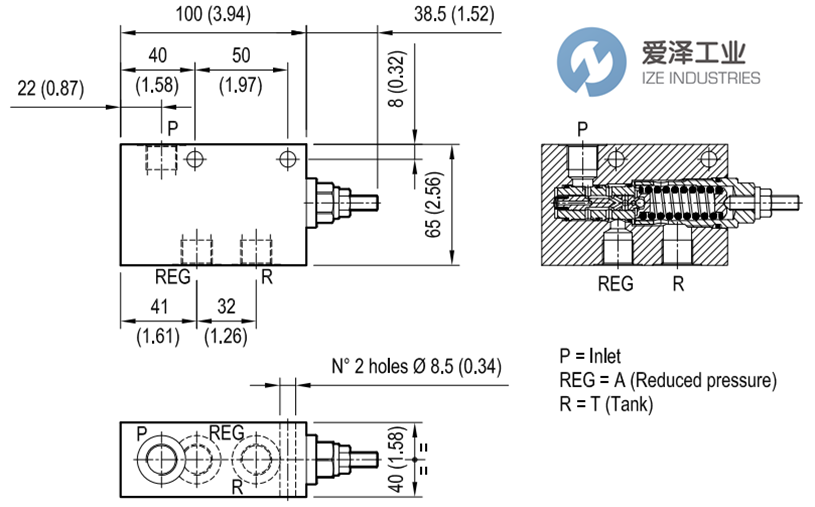

REXROTH OIL CONTROL閥VRP-R系列技術尺寸

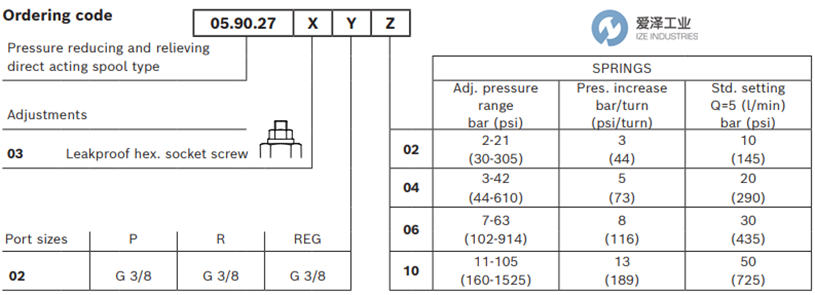

REXROTH OIL CONTROL閥VRP-R系列選型
REXROTH OIL CONTROL閥VRP-R系列其他常用型號：
REXROTH OIL CONTROL 05902703020200B R930002585
REXROTH OIL CONTROL 05902703020400B R930002587
REXROTH OIL CONTROL 05902703020600B R930002588
REXROTH OIL CONTROL 05902703021000B R930002589
REXROTH OIL CONTROL valves NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥05902703021000B R930002589的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥05902703021000B R930002589技術參數及選型
