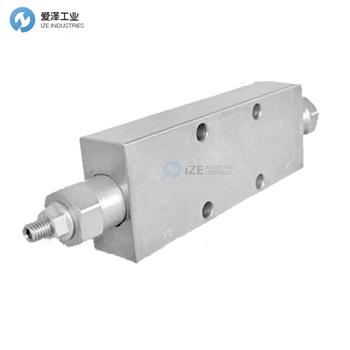

REXROTH OIL CONTROL閥A-VBSO-DE-78-FC2系列技術參數
Technical data | |
Max. operating pressure | 350 bar (5000 psi) |
Max. flow | 40 l/min. (11 gpm) |
Weight | 1.2 kg (2.7 lbs) |
Manifold material | Zinc plated steel |
Flange seal kit 1) | E00000000000031 (R930005645) |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | -30 °C to 100 (-22 to 212 °F) |
Viscosity range | 5 to 800 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |
Relief setting: at least 1.3 times the highest expected load. |
REXROTH OIL CONTROL閥A-VBSO-DE-78-FC2系列介紹
它通過端口 C1 和 C2 調節執行器的流量 IN 和 OUT，提供負載的靜態和動態控制。 該閥模塊包括 2 個部分，每個部分由一個止回閥和一個安全閥導閥組成，由相反管路中的壓力輔助：止回部分允許自由流入執行器，然后保持負載防止反向運動； 在管道兩端施加先導壓力時，溢流閥的壓力設置與規定的比例成比例降低，直到打開并允許受控的反向流動。 V1 或 V2 處的背壓是所有功能中壓力設置的附加值。 為了更好的安全性和緊湊的裝配，C1 和 C2 端口直接安裝在執行器上的墊圈上。
It provides static and dynamic control of load by regulating the flow IN and OUT of the actuator, through ports C1 and C2. This valve module includes 2 sections, each one composed by a check and a relief valve pilot assisted by pressure in the opposite line: the check section allows free flow into the actuator, then holds the load against reverse movement; with pilot pressure applied at the line across, the pressure setting of the relief is reduced in proportion to the stated ratio until opening and allowing controlled reverse flow. Back-pressure at V1 or V2 is additive to the pressure setting in all functions. For better safety and compact assembly, the C1 and C2 ports are gasket mounted directly on the actuator.

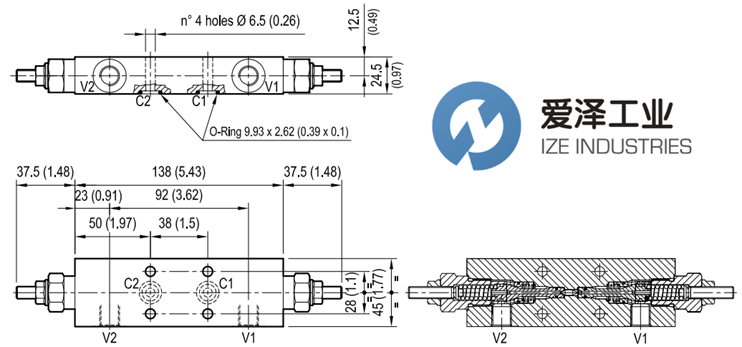

REXROTH OIL CONTROL閥A-VBSO-DE-78-FC2系列技術尺寸

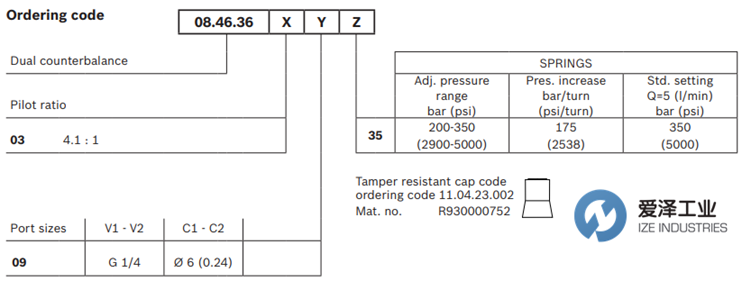

REXROTH OIL CONTROL閥A-VBSO-DE-78-FC2系列選型
REXROTH OIL CONTROL閥A-VBSO-DE-78-FC2系列其他常用型號：
REXROTH OIL CONTROL 084636030935000 R930003638
