REXROTH OIL CONTROL閥A-VBC-42-FC系列技術參數
Technical data | |
Max. operating pressure | 420 bar (6000 psi) |
Max. flow | 400 l/min. (106 gpm) |
Weight | 12 kg (26.5 lbs) |
Flange seal kit | E00000000000003 (R930004533) |
Manifold material | Zinc plated steel |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | -30 °C to 100 (-22 to 212 °F) |
Viscosity range | 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |
REXROTH OIL CONTROL閥A-VBC-42-FC系列介紹
該閥設計為安裝在液壓挖掘機的動臂油缸上的管道上，經過特定調整，它可以成為設計符合 ISO 標準 8643（軟管爆裂保護）的負載保持和負載降低系統的一部分。
This valve is designed to be pipe mounted on boom cylinders of hydraulic excavators, and, with specific adjustments, it can become part of load holding and load lowering systems designed to comply with ISO Standard 8643 (hose burst protection).

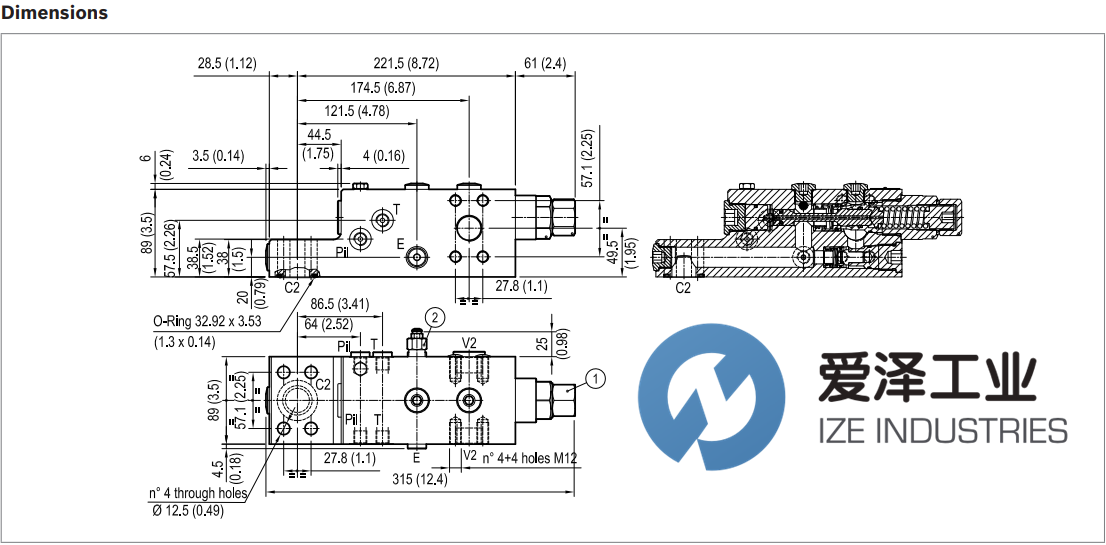

REXROTH OIL CONTROL閥A-VBC-42-FC系列技術尺寸

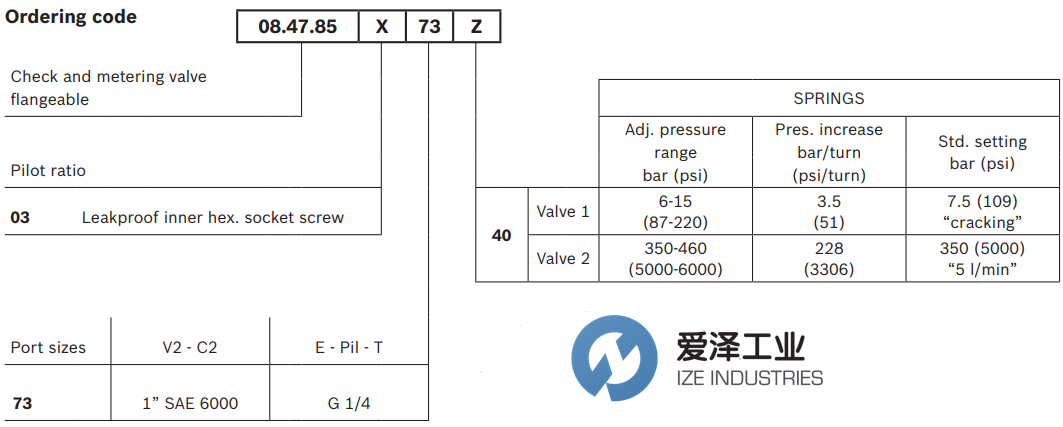

REXROTH OIL CONTROL閥A-VBC-42-FC系列選型
REXROTH OIL CONTROL閥A-VBC-42-FC系列其他常用型號：
REXROTH OIL CONTROL 08478503734000D R930071063
REXROTH OIL CONTROL 08478503736000E R930003802
REXROTH OIL CONTROL 08478503644000C R930006449
REXROTH OIL CONTROL 08478503644000D R930050746
REXROTH OIL CONTROL 08479303736000C R930008391
REXROTH OIL CONTROL 08479303724000D R930003832
REXROTH OIL CONTROL 08479303724000E R930008390
REXROTH OIL CONTROL 08478303634000A R930003745
REXROTH OIL CONTROL 08478303634000B R930043634
REXROTH OIL CONTROL 08479600034000B R987274543
REXROTH OIL CONTROL 083718187346000 R930003755
REXROTH OIL CONTROL 083937227346000 R930007072
REXROTH OIL CONTROL Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥08478503734000D R930071063的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥08478503734000D R930071063技術規格
