REXROTH OIL CONTROL閥A-VBSO-SE-CCAP-33-PL-FC2系列技術參數
Technical data | |
Max. operating pressure | 410 bar (5945 psi) |
Max. flow | 150 l/min. (40 gpm) |
Manifold material | Zinc plated steel |
Flange seal kit 1) | E00000000000057 (R930060587) |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | -30 °C to 100 (-22 to 212 °F) |
Viscosity range | 5 to 800 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |
Relief setting: at least 1.3 times the highest expected load. |
REXROTH OIL CONTROL閥08.45.92 - X - Y - Z系列介紹
當 V2 處的壓力高于彈簧偏置壓力時，止回閥座被推離活塞，允許從 V2 流向 C2。當 C2 處的負載壓力高于壓力設置時，釋放功能被激活，流量從 C2 釋放到 V2。先導壓力在 V1–C1 時，壓力設置與先導比成比例降低，直到打開并允許從 C2 流向 V2。彈簧腔通向大氣，允許所有功能獨立于 V2 背壓運行。為了更好的安全性和緊湊的裝配，C1 和 C2 端口直接安裝在執行器上的墊圈上。
When pressure at V2 rises above the spring bias pressure, the check seat is pushed away from the piston and flow is allowed from V2 to C2. When load pressure at C2 rises above the pressure setting, the relief function is activated and flow is relieved from C2 to V2. With pilot pressure at V1–C1 , the pressure setting is reduced in proportion to the pilot ratio, until opening and allowing flow from C2 to V2. The spring chamber is vented to atmosphere allowing operation of all functions independent of back-pressure at V2. For better safety and compact assembly, the C1 and C2 ports are gasket mounted directly on the actuator.

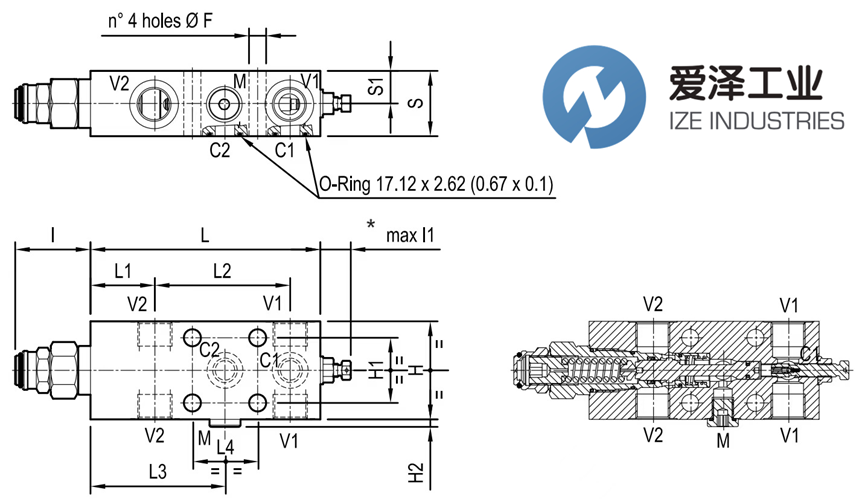

REXROTH OIL CONTROL閥A-VBSO-SE-CCAP-33-PL-FC2系列技術尺寸

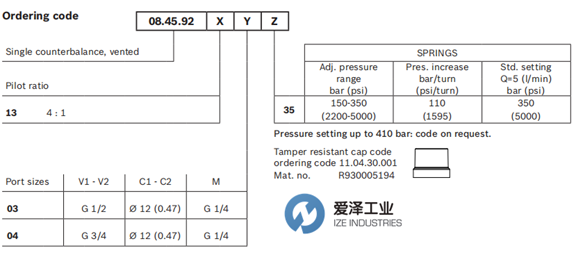

REXROTH OIL CONTROL閥A-VBSO-SE-CCAP-33-PL-FC2系列選型
REXROTH閥A-VBSO-SE-CCAP-33-PL-FC2系列其他常用型號：
REXROTH OIL CONTROL 08459213033500C R930050625
REXROTH OIL CONTROL 08459213043500D R930050627
REXROTH OIL CONTROL valves NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥08459213033500C R930050625的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥08459213033500C R930050625技術規格
