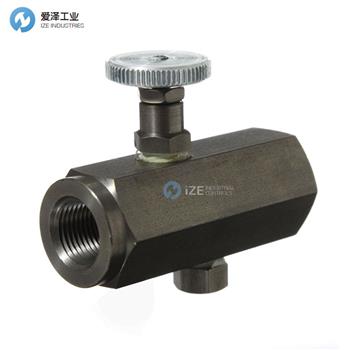

DELTROL限流閥F30S技術規格
Specifications | |
Max Operating Pressure (psi) | 5000 |
Max Operating Pressure (bar) | 345 |
Max Flow gpm | 8 |
Max Flow lpm | 30.3 |
Max Cracking Pressure psi | 2.5 |
Max Cracking Pressure bar | 0.17 |
Cv Factor | 1.47 |
Port Size | 1/2" |
Port Type | NPTF |
Material | Steel |
Knob | Knurled |
Recommended Operating Tempature Range (°F) | -15 to +400 |
Recommended Operating Tempature Range (°C) | -26 to +204 |
Maximum Operating Pressure (Non-Shock Service) | Brass: 2,000 psi (138 bar) |
Maximum Operating Pressure (Flow Control Poppet) | 60 psi (4 bar) |
Cracking Pressure | 1 to 2.5 psi (.07 to .17 bar) Soft seat check valves if left seated for a period of time, will have the rubber adhere to the metal it is in contact with. This results in an initial high crack point due to sticking. The degree depends on many things (time seated, pressure, etc.). |
Operating Temperature Range | -15° to +400° F (-26° to +204° C) |
Threads | NPTF, BSPT, SAE |
Materials | Body, Housing, Plug: Brass, Steel, Stainless Steel 303 |
DELTROL限流閥F30S介紹
描述
具有正向關閉和自由反向流動功能的可變流量限制器。
由于采用細螺紋和錐形針，因此可以在受控流動方向上進行廣泛的流量調節。彈簧偏置球閥或可選的提升閥閥允許在相反方向上完全流動。鎖緊螺母可防止不必要的調整變化。
特點和優點
廣泛的流量可調性
鎖緊螺母可保持流量設置
正向關閉
防漏球閥標準
帶 O 形圈的氣密提升閥可選
Description
A Variable Flow Restrictor with Positive Shut-Off and Free Reverse Flow.
A wide range of flow adjustment in the controlled flow direction is possible because of the fine thread and tapered needle. A spring biased ball check or optional poppet check allows full flow in the opposite direction. Unwanted changes in adjustment are prevented by a lock nut.
Features and Benefits
A wide range of flow adjustability
Lock Nut to maintain flow setting
Positive shut-off
Leak-Tight Ball Check standard
Bubble-Tight Poppet with O-Ring optional
