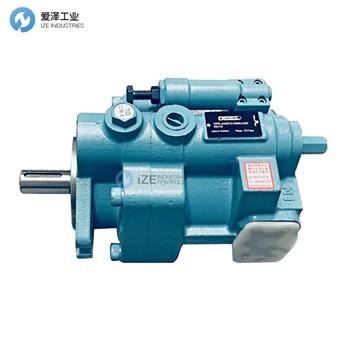

DUPLOMATIC泵VPPL-022PC5-R00S/20N技術參數
VPPL | Variable displacement axial piston pump for intermediate pressure |
022 | 22 cm3/rev |
PC5 | max 210 bar for VPPL-008, 016, 022, 036, 046 |
R | Clockwise rotation (seen from the shaft side) |
0 | SAE-2 type for VPPL-008, 016, 022, 036 and 046 |
0 | cylindrical with key SAE J744 |
S | suction / delivery: SAE flange with metric bolts. Drainage with BSP threaded ports (not available for VPPL-008) |
20 | (the overall and mounting dimensions remain unchanged from 20 to 29) |
N | NBR sealing rings for mineral oils |
DUPLOMATIC泵VPPL系列其他常用型號：
DUPLOMATIC VPPL-022PC5-R00S/20N
DUPLOMATIC valves NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUPLOMATIC泵VPPL-022PC5-R00S/20N的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUPLOMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
DUPLOMATI泵VPPL-022PC5-R00S/20N技術參數及介紹
