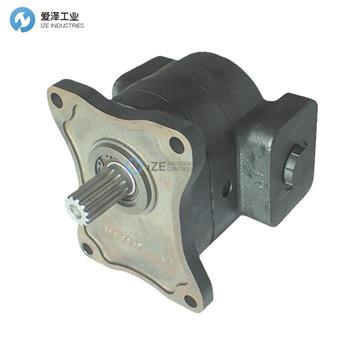

JIHOSTROJ齒輪泵GHD0系列介紹
描述
由于其堅固的鑄鐵結構，GHD0 系列帶外部齒輪的泵適用于農業和建筑機械領域最重的應用。GHD0 系列的排量范圍為10至36 cm3/rev。
這些泵的特點是三部分全鑄鐵結構：法蘭 - 主體 - 蓋子。支撐齒輪螺柱的襯套壓入法蘭和蓋子中。齒輪經過優化，噪音水平較低，由超高強度鋼制成。液體入口和出口位于蓋子中（因此，主體不會被它們削弱，并且可以承受更高的壓力負荷），從側面或軸向位于蓋子中。軸向功率平衡是使用滑動鋁合金壓板進行的，其中平衡表面的形狀密封位于凹槽中。法蘭尺寸允許設計帶有軸承的預軸，以承受更高的驅動器徑向或軸向載荷。
GHD0 泵采用各種驅動器、夾緊法蘭以及液體入口和出口設計。這些泵符合 ISO、SAE、UNI 和其他世界公認的標準，可以采用單向單節和多節設計。它們還可以采用可逆設計，具有外部或內部排水。
DESCRIPTION
Due to their robust iron-cast structure, the GHD0 series pumps with external gearing are intended for the heaviest applications in the area of agricultural and building machines. The GHD0 series covers the range of displacements from 10 to 36 cm3/rev.
These pumps are characterized by a three-part, all-cast-iron structure: flange – body – cover. Bushings supporting gear studs are pressed into the flange and the cover. Gear wheels, which are optimised to achieve a low noise level, are made of ultrahigh-strength steel. Liquid inlet and outlet are located in the cover (thus, the body is not weakened by them and a higher pressure load is possible) from sides or axially in the cover. The axial power balancing is performed using sliding aluminium alloy pressure plates in which a shape sealing of balancing surface is located in grooves. The flange dimensions enable a design with a pre-shaft with bearings for a higher radial or axial load of the drive.
The GHD0 pumps are produced in various designs of drives, clamping flanges as well as liquid inlets and outlets. These pumps comply with the standards ISO, SAE, UNI and other world-recognised standards, they can be delivered in one-way single-section as well as multiple-section designs. They can also be delivered in a reversible design, with external or internal drainage.
JIHOSTROJ齒輪泵GHD0系列其他常見型號：
JIHOSTROJ GHD0P-25/7R-S03D13-SE05E02/NE02-V.042
JIHOSTROJ GHD0-36L-S1D2-RG05G03-V
JIHOSTROJ GHD0P7
JIHOSTROJ GHD0P10
JIHOSTROJ GHD0P13
JIHOSTROJ GHD0P17
JIHOSTROJ GHD0P19
JIHOSTROJ GHD0P23
JIHOSTROJ GHD0P27
JIHOSTROJ pumps NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JIHOSTROJ齒輪泵GHD0P-25/7R-S03D13-SE05E02/NE02-V.042的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for JIHOSTROJ products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
JIHOSTROJ齒輪泵GHD0系列GHD0P-25/7R-S03D13-SE05E02/NE02-V.042介紹
