PROCON泵101A140F11AA技術參數
Technical Information | |
Flow Rate GPH | 140GPH |
Flow Rate LPH | 425LPH |
Material | Brass |
Port Hole | NPT 3/8" |
Integrated Strainer | Yes |
Mounting Type | Clamp-On |
Drive Configuration | Double Flat |
Elastomer | EPDM/Nitrile |
Seal Type | Non Balances Ceramic/Carbon |
Rotation | Clockwise |
Internal Component Material | Carbon |
Valve Type | Bypass- Ultem |
Valve Configuration | Standard-Non External adjust |
Product Weight | 2.4lb (1.09Kg) |
PROCON泵101A140F11AA產品介紹
旋片黃銅泵系列 1- 140GPH (425LPH)，EPDM/腈綸，標準-非外部調節
? 可變壓力下的一致流速
? 自吸（水）且免維護，具有低振動和脈動特性
? 內部泄壓閥標準-非外部調節配置
? 一體式濾網，用于從泵送流體中去除碎屑
? 黃銅外殼材料
? NPT 3/8" 入口和出口連接
? 采用 EPDM/腈綸彈性體制成
? 流速為 140GPH (425LPH)*
? 流體工作溫度在 -4°F 至 160°F (-20°C 至 71°C) 之間
? 所需最大機械馬力為 0.64hp (477W)1

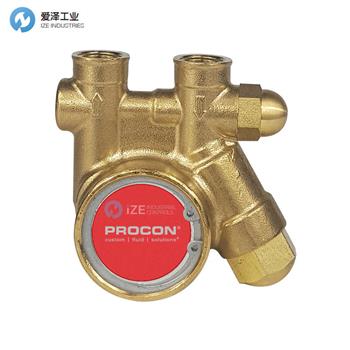

Rotary Vane Brass Pump Series 1- 140GPH (425LPH), EPDM/Nitrile, Standard-Non External adjust
? Consistent flow rate across variable pressures
? Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
? Internal Relief Valve Standard-Non External adjust configuration
? Integral Strainer for debris removal from pumping fluid
? Brass Housing Material
? NPT 3/8" Inlet and Outlet Connections
? Constructed with EPDM/Nitrile Elastomers
? Flowrate of 140GPH (425LPH)*
? Fluid Operating Temperature of between -4°F to 160°F (-20°C to 71°C)
? Maximum Mechanical Horsepower required 0.64hp (477W)1
