BUCHER泵QX53-050R技術參數
Code | QX53-050R |
Series | QX |
Frame size | 5 |
Pressure range | 3 |
Displacement | 050 = 50 cm3/rev |
Rotation | R = right (CW) |

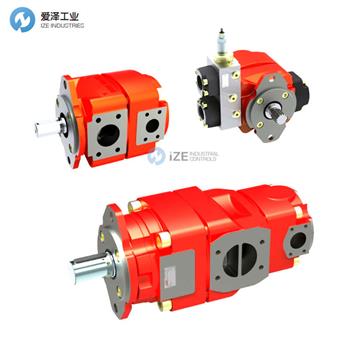

BUCHER泵QX系列介紹
QX 泵是 Bucher 內齒輪泵的第五代產品，在全球多年的服務中已證明其性能。該泵的設計簡潔而堅固，經過了多次改進。
制造工藝的進步使得無需對單個部件提出更高要求，即可制造出重量更輕、結構更緊湊的泵。
借助 CAE 設計和優化的新齒形再次顯著降低了噪音水平。大密封面積可提高效率。內齒圈由流體動力/流體靜壓潤滑膜支撐，可在低粘度或低速和高速下運行。因此，QX 泵適合與變速驅動器一起使用，可提供可變流量
? 使用壽命極長
? 容積效率高達 98%
? 適合與變速驅動器一起使用
? 可與耐火流體（HFB、HFC 和 HFD = QXV）、燃料、可生物降解和低粘度流體一起使用
? 通過 ATEX 2、ABS、DNV、GL、LR、NK 等認證
? 低流量和壓力脈動
The QX pumps are the 5th generation of Bucher internal gear pumps, which have proven themselves in thirty years of service around the world. Numerous improvements have been made to the straightforward and robust design.
Advances in the manufacturing process have made it possible without making higher demands on individual components to build pumps that are considerably lighter and more compact.
A new tooth profile, conceived and optimised with the help of CAE, has yielded another significant reduction in noise levels. Large sealing areas result in higher efficiencies. The internal ring gear is supported by a hydrodynamic/ hydrostatic lubrication film, which allows operation at low viscosities or low and high speeds. QX pumps are therefore suitable for use with variable speed drives, where they can provide variable flow rates
? Extremely long service life
? Volumetric efficiency up to 98%
? Suitable for use with variable speed drivers
? Can be used with fire resistant fluids (HFB, HFC and HFD = QXV), fuels, biodegradable and low-viscosity fluids
? Certifications by ATEX 2, ABS, DNV, GL, LR, NK, ...
? Low flow and pressure pulsations

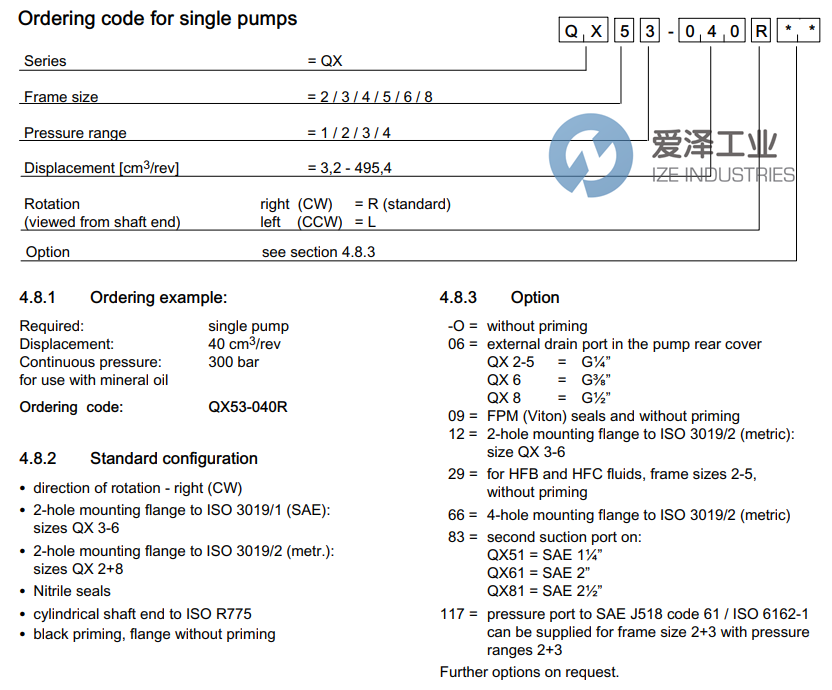

BUCHER泵QX系列選型
BUCHER泵QX系列其他常用型號：
BUCHER QX53-050R
BUCHER QX23-005
BUCHER QX23-006
BUCHER QX23-008
BUCHER QX33-010
BUCHER QX33-012
BUCHER QX33-016
BUCHER QX43-020
BUCHER QX43-025
BUCHER QX43-032
BUCHER QX53-040
BUCHER QX53-050
BUCHER QX53-063
BUCHER QX63-080
BUCHER QX63-100
BUCHER QX63-125
BUCHER QX83-160
BUCHER QX83-200
BUCHER QX83-250
BUCHER PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BUCHER泵QX53-050R的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BUCHER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
