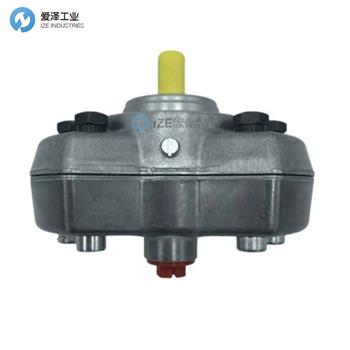

HAWE柱塞泵R11.8技術參數
Type | R Series, version with roller bearing |
Coding for delivery flow (lpm) at 1450 rpm | 11.8 |
Displacement volume Vg (cm3/rev) | 8.19 |
Operating pressure pmax (bar) | 250 |
Assembly | 6011 |
Pump elements number | 7 |
Pump element φ (mm) | 14 |
Power range of motor (kW) | 0.55 - 5.5 |
HAWE柱塞泵R系列介紹
R 型徑向柱塞泵由圍繞偏心輪以星形排列的閥控泵元件組成。對于大流量，最多可將 42 個泵元件設置為 6 顆星形，一層一層堆疊在一起。泵元件的輸出體積被合并以供給一個或多個壓力出口。
R 和 RG 型徑向柱塞泵具有封閉的泵殼。因此，它既可以用作未安裝在油箱中的外部電動泵，也可以用作安裝在液壓動力單元油箱內的集成版本。 RG 型徑向柱塞泵配有滑動軸承，使用壽命更長。
特點及優點：
效率非常高
可以使用低粘度介質運行
精細的輸送流量等級
使用壽命長
操作不依賴于旋轉方向
The radial piston pump type R consists of valve-controlled pump elements arranged in star form around an eccentric. For large flow rates, up to 42 pump elements can be set up in 6 stars stacked one above the other. The pump elements’ output volume is merged to feed one or more pressure outlets.
The radial piston pump types R and RG have a closed pump housing. It can consequently be used both as an external motor pump not installed in an oil tank or as an integrated version installed inside a hydraulic power pack’s tank. The radial piston pump type RG has plain bearings which have an extended service life.
Features and advantages:
Very high efficiency
Can be run with low-viscosity media
Fine delivery flow rate gradation
Long service life
Operation not dependent on direction of rotation
HAWE柱塞泵R系列其他常用型號：
HAWE R5.8
HAWE R5.85
HAWE R6
HAWE R6.1
HAWE R6.5
HAWE R7
HAWE R7.4
HAWE R8
HAWE R8.2
HAWE R8.3
HAWE R8.35
HAWE R8.4
HAWE R9.5
HAWE R9.8
HAWE R10.9
HAWE R11
HAWE R11.6
HAWE R11.65
HAWE R11.8
HAWE R12
HAWE R12.7
HAWE R13.3
HAWE R14.2
HAWE R15
HAWE R15.3
