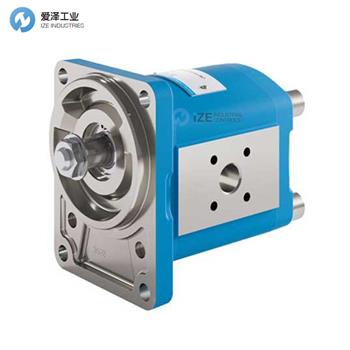

KRACHT泵KP2/40S20GY004DL1規格描述
Product code | KP |
Size | 2 |
Nominal size | 40 |
Flange mounting cover | S - SAE-B 2-hole flange, LA = 146; ? Z = 101.6 |
Direction of rotation | 2 - Anticlockwise |
Outboard flanges or bearing | 0 - without |
Housing connection | G - Suction side 11?2" SAE connection (? 40) |
Shaft end / Shaft load capacity | Y - Cylindrical shaft ? 24; 230 Nmmax KP 2; ? 32; 550 Nmmax KP 3 |
Shaft end | 0 - None |
Transition piece | 0 - Standard design (1-stage pump) |
Design code | 4 - KP2 (specified by KRACHT) |
Housing and bearing design | D - Grey cast iron with composite plain bearings |
Gear design | L - Shaft and pin wheel made of case-hardened steel, ground tooth flanks |
Seals | 1 - NBR rotary shaft lip type seals ? 90 °C |
KRACHT泵KP系列型號：
KRACHT KP2/40S20GY004DL1
KRACHT KP0/2K10SM0A8ML1
KRACHT KP1/5,5F10AK0A4NL1
KRACHT KP1/11A10ASOA4NL1
KRACHT KP2/25G10AK004DL1
KRACHT KP2/32S10FY004DL2
KRACHT KP0,5/57RF5LL1
KRACHT pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KRACHT泵KP2/40S20GY004DL1的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for KRACHT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
KRACHT泵KP2/40S20GY004DL1選型介紹
