SUNFAB泵SVH-130 LDYN-1-LSP/L-2-350技術參數

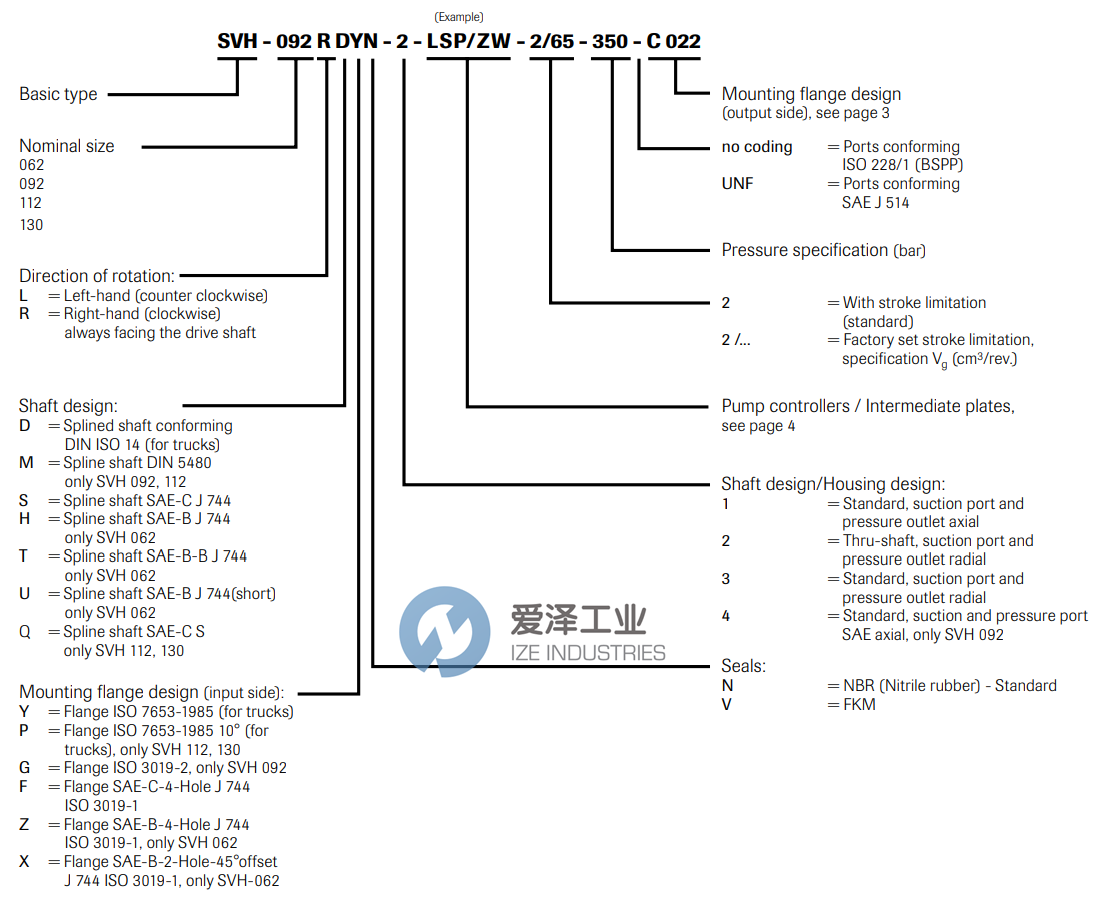

Basic type | SVH |
Nominal size | 130 |
Direction of rotation: | L = Left-hand (counter clockwise) |
Shaft design: | D = Splined shaft conforming DIN ISO 14 (for trucks) |
Mounting flange design (input side): | Y = Flange ISO 7653-1985 (for trucks) |
Seals: | N = NBR (Nitrile rubber) - Standard |
Shaft design/Housing design: | 1 = Standard, suction port and pressure outlet axial |
Pump controllers / Intermediate plates | LSP = Load-Sensing controller with integrated pressure limitation |
2 = With stroke limitation (standard) | |
Pressure specification (bar) | 350 |
SUNFAB泵SVH系列介紹
Sunfab 變量泵結構堅固，設計用于直接安裝在商用車的輔助驅動裝置 (P.T.O.) 上。
最大排量為 130 cm3/rev。 峰值壓力為 450 bar，適合多種應用。 高自吸率和低噪音水平補充了這一點。 泵的輸送流量取決于當前的驅動速度和幾何排量。 流量可在 0 至 Qmax 范圍內調節。
斜盤軸瓦的加壓潤滑確保了較長的使用壽命。
Sunfab SVH 與旋轉方向相關，應以右手或左手設計訂購。
? 重置流量時反應時間短
? 安裝尺寸緊湊
? 允許高工作壓力水平
? 外部排水以實現最佳冷卻
? 結構堅固，使用壽命長
? 低噪音排放
? 高功率重量比

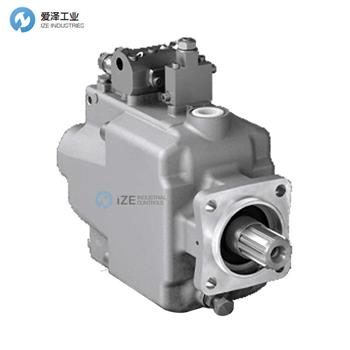

The Sunfab variable displacement pump with its rugged construction is designed for direct mounting at the auxiliary drive (P.T.O.) of commercial vehicles.
With a max. displacement of 130 cm3/rev. and a peak pressure of 450 bar it is suited for many applications. This is complemented by the high self priming rate and the low noise level. The pump delivery flow is dependent on the present drive speed and geometric displacement. The flow is adjustable in a range between 0 and Qmax.
Long service life is ensured due to the pressurized lubrication of the swash plate bearing shell.
Sunfab SVH is rotation-direction dependent and should be ordered in either right-hand or left-hand designs.
? Short reaction time when resetting the flow
? Compact installation dimensions
? High working pressure level allowed
? Externally drained for best cooling
? Rugged construction and long service life
? Low noise emission
? High power-to-weight-ratio
SUNFAB泵SVH系列選型
SUNFAB泵SVH系列其他常用型號：
SUNFAB SVH 130L RDYN-1-LSP/L-2-350
SUNFAB SVH-130-LDYN-1-0-LSNR-L-350
SUNFAB SVH-130-RDYN-1-LSNR/L-350
SUNFAB SVH-130 LDYN-1-LSP/L-2-350
SUNFAB SVH-130LDYN-1-LSP-2-350
SUNFAB SVH-112 RDYN-1-LSP-2-350
SUNFAB SVH-112 LDYN-1-LSP-2-350
SUNFAB SVH-092 LDYN-1-LSP-2-350
SUNFAB PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
