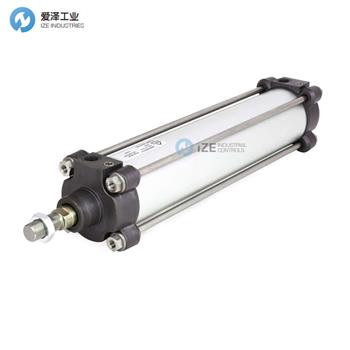

PIMATIC氣缸P2020系列技術參數
Technical details | |
Cylinder diameters | 32-320 mm |
Pressure range | 0-10,0 bar |
Operating medium | Compressed air, filtered, max. 40 μm, no lubrication needed |
Ambient temperature range | -20-+80 °C with standard seals, -5-+150 °C with FKM seals |
Materials | Cylinder barrel – Hard-anodized aluminium |
End caps – Anodized aluminium | |
Piston rod – Chrome plated steel or Chrome plated stainless steel | |
Sealings – NBR as standard, FKM as an option | |
Tie rods – Diameters 32-125 stainless steel, 160-320 zinc plated steel | |
More information | Pimatic ISO 15552 cylinders pdf brochure |
PIMATIC氣缸P2020系列介紹
? 重型氣缸直徑范圍 32-200 mm
? 帶拉桿的硬質陽極氧化筒
? PTFE 活塞桿密封，直徑 80-200 mm
? 選項：
- 不銹鋼活塞桿，鍍鉻
- 由 AISI316 制成的耐腐蝕鋼部件
- 高溫 FKM 密封件
- 雙活塞桿
- 串聯氣缸
- 3 位和 4 位氣缸
? 磁性活塞標準直徑為 32-125 mm，可選直徑為 160 至 200 mm
? Heavy duty cylinder diameter range 32-200 mm
? Hard-anodized barrel with tie rods
? PTFE piston rod sealing in diameters 80-200 mm
? Options:
- Stainless steel piston rod, chrome plated
- Corrosive resistant, steel parts made of AISI316
- High temperature FKM seals
- Double piston rod
- Tandem cylinders
- 3- and 4- position cylinders
? Magnetic piston standard in diameters 32-125 mm, as an option in diameters from 160 and 200 mm

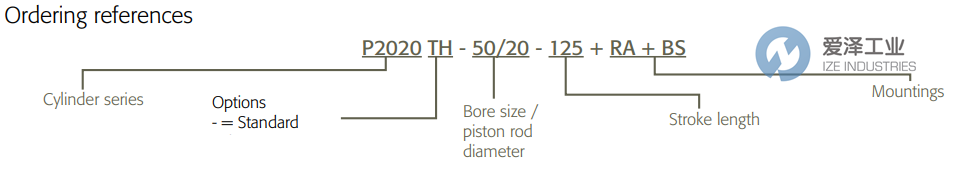

PIMATIC氣缸P2020系列選型
PIMATIC氣缸P2020系列其他常用型號：
PIMATIC P2020RHTV-80/25-320
PIMATIC P2020R-63/20-80+TA
PIMATIC P2020R-50/20-160+RA+BS
PIMATIC P2020R-100/25-80+MA+LA+BS
PIMATIC CYLINDERS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PIMATIC氣缸P2020RHTV-80/25-320的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PIMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
PIMATIC氣缸P2020系列P2020RHTV-80/25-320技術參數及選型
