WALVOIL壓力補償閥VPR/3/ET/RL12技術參數
Max. inlet flow Line E | 90 l/min (23.8 US gpm) |
Max. regulated flow Line C | 50 l/min (13.2 US gpm) |
Max. regulated flow “SB”* | 25 l/min (6.6 US gpm) |
Max. pressure | Aluminium body = 210 bar (3050 psi) |
Fluid | mineral based oil |
Viscosity | from 10 to 200 cSt |
Max. level of contamination | 18/16/13 ISO4406 |
Fluid temperature | with NBR seals from -20°C (-4°F) to 80°C (176°F) |
Environmental temperature for working conditions | from -40°C (-40°F) to 100°C (212°F) |
Weight | aluminium: 1.30 kg (2.86 lb) 1.25 kg (2.75 lb) 2.75 kg (6.06 lb) |
WALVOIL壓力補償閥VPR/3/ET/RL系列介紹

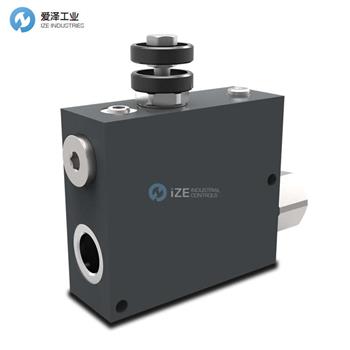

VPR/3/ET/RL 型流量控制壓力補償閥
壓力補償流量調節器提供恒定流量，不受負載壓力變化的影響
? 3 種方式
? 具有反向自由流動止回裝置
Type VPR/3/ET/RL flow control pressure compensated valves
The pressure compensated flow regulators provide a constant flow independently from load pressure variations
? 3 ways
? With reverse free - flow check
WALVOIL壓力補償閥VPR/3/ET/RL系列其他常用型號：
WALVOIL VPR/3/ET/RL 38/V
WALVOIL VPR/3/ET/RL 12/V
WALVOIL VPR/3/ET/RL 34/V
WALVOIL VPR/3/ET/RL 38/V/ac
WALVOIL VPR/3/ET/RL 12/V/ac
WALVOIL VPR/3/ET/RL 34/V/ac
WALVOIL VPR/3/ET/RL 38/MG
WALVOIL VPR/3/ET/RL 12/MG
WALVOIL VPR/3/ET/RL 34/MG
WALVOIL VPR/3/ET/RL 38/L
WALVOIL VPR/3/ET/RL 12/L
WALVOIL VPR/3/ET/RL 34/L
WALVOIL PRESSURE COMPENSATED VALVES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WALVOIL壓力補償閥VPR/3/ET/RL12/V的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WALVOIL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
WALVOIL壓力補償閥VPR/3/ET/RL12/V技術參數及介紹
