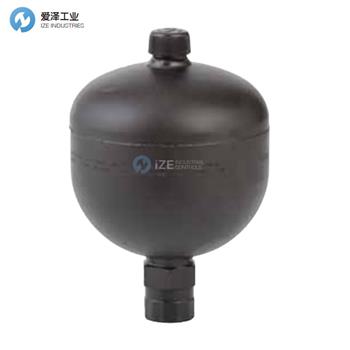

OLAER蓄能器DA-075-210ABAF1125是ELM 0.75-210/85/AF的升級型號
OLAER蓄能器DA-075-210ABAF1125技術參數
Technical Specifications | |
Product Series: | DA Series (formerly ELM) |
Product Type: | Diaphragm / Membrane Accumulator |
Gas Volume: | up to 3.5 L |
Maximum Operating Pressure: | up to 350 bar |
Specifications Met: | PED2014/68/EU or Article 4.3 |
Valve Port Size: | Gas side : (Nitrogen rechargable) M28 x 1.5, |
Body Material: | Carbon Steel |
Elastomer: | NBR nitrile standard rubber |
Minimum Operating Temperature: | from -35 °C |
Maximum Operating Temperature: | up to +80 °C |
Weight: | 0.7 to 16.5 kg |
Height: | 112 to 326 mm |
Diameter: | 64 to 180 mm |
Accessories Included: | Clamps, LockNuts & Charging Kits |
OLAER蓄能器DA系列介紹
DA 蓄能器系列配有粘合密封 (BS) 流體端口，具有內螺紋或外螺紋和內螺紋流體連接以及 M28x1,5 氣體連接。
特點/優點：
? 采用由膜片蓄能器組成的液壓減震器，提高了駕駛員的舒適度，并在駕駛時提供即時響應時間越過障礙物或崎嶇的地形。
? DA 隔膜蓄能器為液壓系統提供了一種經濟有效的解決方案。
? DA 隔膜蓄能器符合PED 標準，可在超過35 個國家/地區使用。
? DA 隔膜蓄能器提供高壓縮比（高達 8 – 根據類型）
? 低維護產品
DA accumulator range comes with a bonded seal (BS) fluid port with female or male and female fluid connection and M28x1,5 gas connection.
Features/Benefits:
? The adaption of a hydraulic shock absorber made up of a diaphragm accumulator improves driver comfort and offers immediate response times when driving over obstacles or rough terrain.
? The DA diaphragm accumulator offers a cost effective solution for hydraulic systems.
? The DA diaphragm accumulators are PED compliant and can be used in over 35 countries.
? The DA diaphragm accumulators offer high compression ratio (up to 8 – according to type)
? Low maintenance product

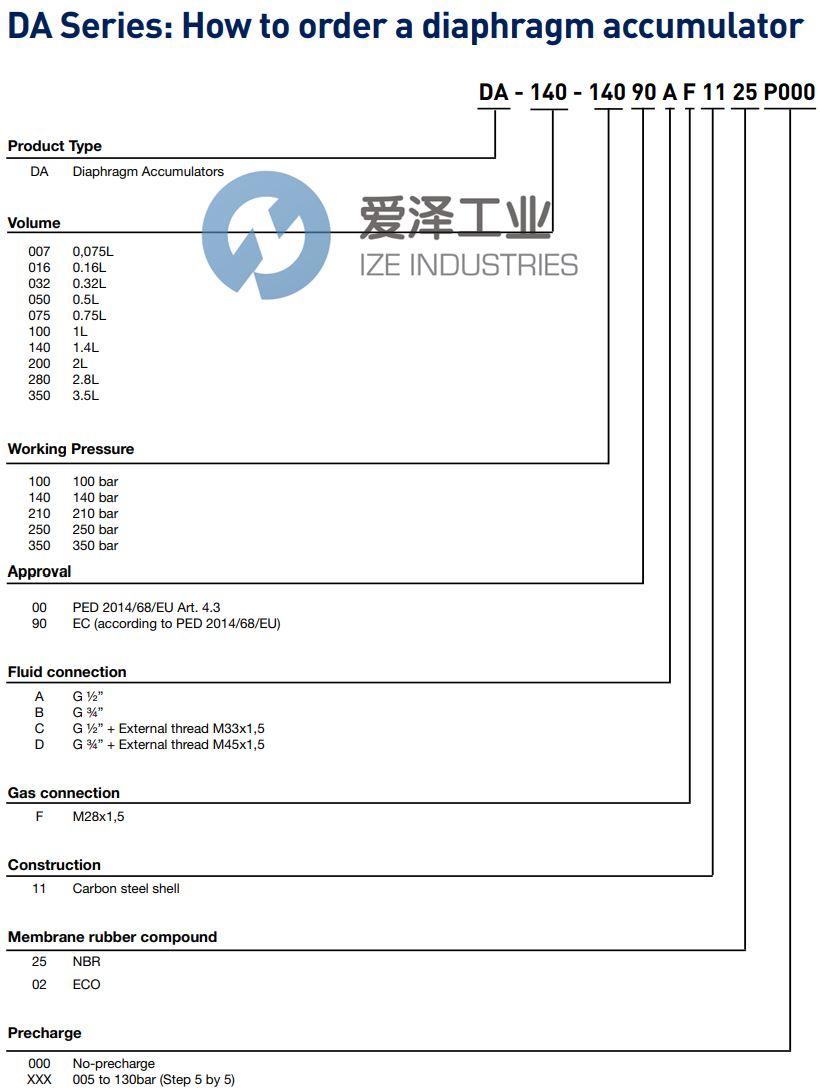

OLAER蓄能器DA系列選型
OLAER蓄能器DA系列其他常用型號：
OLAER DA00725000AF1102000
OLAER DA01625000AF1102000
OLAER DA03221000AF1102000
OLAER DA05021000AF1102000
OLAER DA07521000AF1102000
OLAER DA10021000AF1102000
OLAER DA14014090AF1102000
OLAER DA20025090BF1102000
OLAER DA28025090BF1102000
OLAER DA35025090BF1102000
OLAER DA-075-210ABAF1125
OLAER DIAPHRAGM ACCUMULATORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于OLAER蓄能器DA-075-210ABAF1125的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for OLAER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
OLAER蓄能器DA系列DA-075-210ABAF1125技術參數及選型
