FILL-RITE輸油泵FR310VN技術參數
PERFORMANCE | |
Max Flowrate | 35 GPM/ 132 LPM |
Power Type | 115V/230V AC |
Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20 |
Inlet Size / Connection/ Thread | 1.25 " / Female / NPT |
Outlet Size / Connection / Thread | 1 " / Female/ NPT |
Mounting Size / Thread/ Type | 2" / NPT / Bung Mount |
Duty Cycle (min) | 30 min on/ 30 min off |
Power Source | Electrical |
Motor Power (HP) | 0.75 |
Max Current (A) | -- |
Thermal Protection Switch | -- |
Self Priming | -- |
Suction Lift (ft.) | 18 ' |
DryVacuum (in. Hg) | 14 |
Operating Temperature Range (°F) | -- |
Discharge Head (ft) | 60 ' |
Strainer Mesh Size (Micron) | 40x 40 x .008” |
Max Discharge Pressure (PSI) | 26 PSI |
Viscosity Range (cSt) | -- |
FILL-RITE輸油泵FR310VN產品介紹

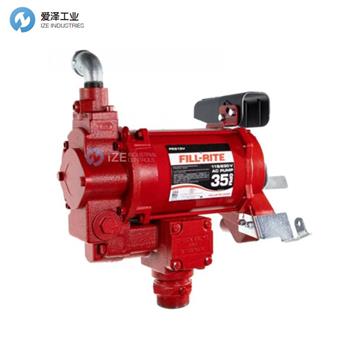

The FR310VN model is a 115/230V AC, 35 GPM, heavy-duty fuel transfer pump. This model includes installation components and no additional accessories.
Cast-Iron Construction — heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
High Performance — Fill-Rite’s trusted rotary vane pump technology delivers 35 gallons per minute, perfect for filling your largest equipment with fuel tanks sized at 35-140+ gallons
Dual Voltage Motor — powered by a dual voltage 115-230V AC motor, you can conveniently select the right voltage during installation with a simple switch
Stationary Tanks — Equipped with a 2 inch bung mount, this pump is ideal for installing onto stationary aboveground tanks
Fluid Compatibility — designed for daily use with diesel fuel, kerosene, mineral spirits, Stoddard solvents, heptane, and biodiesel blends up to B20
Reliable Technology — rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump
Long Life — thermally-protected motor prevents overheating, ensuring your pump performs for years without worry
Equipment Safeguard — built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment
FR310VN 型號是 115/230V AC、35 GPM 重型燃油傳輸泵。該型號包含安裝組件，無額外配件。
鑄鐵結構——重型鑄鐵結構提供無與倫比的耐用性，能夠承受現場或工作現場最惡劣的條件
高性能 — Fill-Rite 值得信賴的旋片技術每分鐘可提供 35 加侖的流量，非常適合為您最大的設備（油箱容量為 35-140+ 加侖）進行填充
雙電壓電機——由雙電壓115-230V交流電機供電，您可以在安裝過程中通過簡單的開關方便地選擇合適的電壓
固定式儲罐 — 該泵配有 2 英寸塞子安裝座，非常適合安裝到固定地上儲罐上
流體兼容性 — 專為日常使用而設計，可與柴油、煤油、礦物油精、斯托達德溶劑、庚烷和最高 B20 的生物柴油混合物混合使用
可靠的技術——旋片技術在正常使用磨損時自然會保持其第一天的性能水平，從而在泵的整個使用壽命內保持一致的性能
使用壽命長 - 熱保護電機可防止過熱，確保您的泵可以無憂無慮地運行多年
設備保障——內置網狀過濾器可過濾燃油中的顆粒物，防止損壞設備
