UFI過濾器FRB 11-B-04-B-N-CD-05-W-W技術參數
COMPLETE FILTER FAMILY | F R B |
SIZE & LENGTH | 11 |
PORT TYPE | B = BSP thread |
PORT SIZE | 04 = 1/2" |
BYPASS VALVE | B = 170 kPa (1,7 bar) - 250 kPa (2,5 bar) for F+ media |
SEALS | N = NBR Nitrile |
FormulaUFI MEDIA | CD = FormulaUFI.CELL 25 μm β>2 |
CLOGGING INDICATOR | 05 = nr. 2 x 1/8" ports, plugged |
ACCESSORIES | W = without |

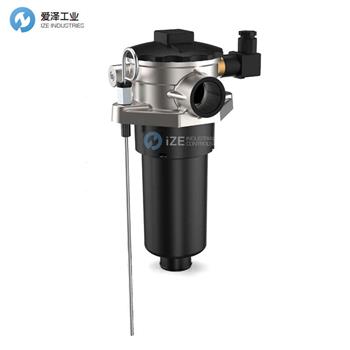

UFI過濾器FRB系列介紹
罐頂回油過濾器，內置呼吸器
材質
頭部：鋁合金
蓋子和碗：聚酰胺
旁通閥：聚酰胺
密封件：NBR 丁腈橡膠
指示器外殼：黃銅
壓力
最大工作壓力：700 kPa (7 bar)
濾芯壓潰、壓差 (ISO 2941)：300 kPa (3 bar)
Tank top return line filter, inbuilt breather
MATERIALS
Head: Aluminum alloy
Cover and Bowl: Polyamide
Bypass valve: Polyamide
Seals: NBR Nitrile
Indicator housing: Brass
PRESSURE
Max.working: 700 kPa (7 bar)
Collapse, differential for the filter element (ISO 2941): 300 kPa (3 bar)

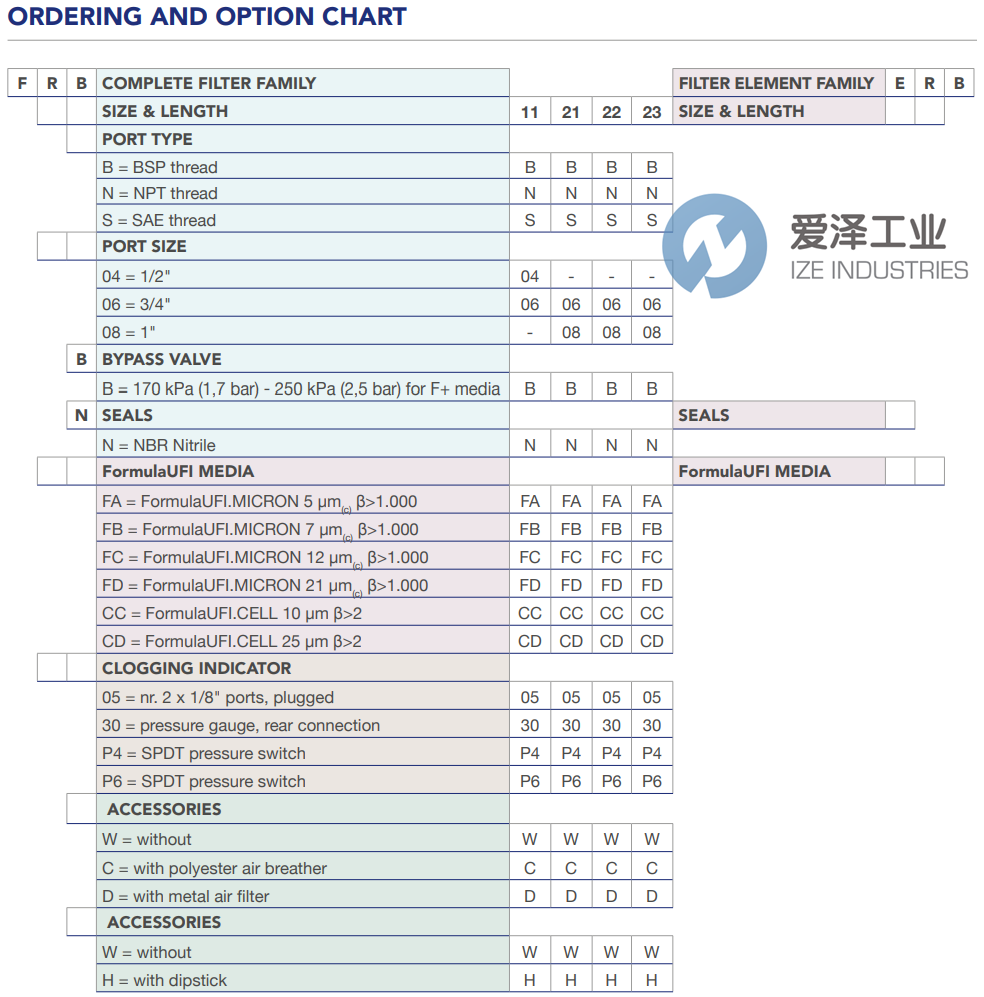

UFI過濾器FRB系列選型
UFI過濾器FRB系列其他常用型號：
UFI FRB 11-B-04-B-N-CD-05-W-W
UFI FRB 11-N-04-B-N-CD-05-W-W
UFI FRB 11-S-04-B-N-CD-05-W-W
UFI FRB 11-B-06-B-N-CD-05-W-W
UFI FRB 11-N-06-B-N-CD-05-W-W
UFI FRB 11-S-06-B-N-CD-05-W-W
UFI FRB 11-B-04-B-N-FA-05-W-W
UFI FRB 11-N-04-B-N-FA-05-W-W
UFI FRB 11-S-04-B-N-FA-05-W-W
UFI FRB 11-B-06-B-N-FA-05-W-W
UFI FRB 11-N-06-B-N-FA-05-W-W
UFI FRB 11-S-06-B-N-FA-05-W-W
UFI RETURN FILTERS NEW + ORIGINAL+ ONE YEAR WARRANTY
