ANNOVI REVERBERI泵XWP70.12N系列技術參數
Weight | 39 lbs |
Pump Orientation | Horizontal |
Pump Head Material | brass |
Connecting Rods | aluminum |
Max GPM | 18.5 |
Max L/Min | 70 |
Max PSI | 1740 |
Max Bar | 120 |
Power EBHP | 22 |
Bore Dia mm | 30 |
Stroke mm | 23 |
CSID Stamp | 15 |
Inlet (in) | 1" |
Outlet (in) | 1/2" |
Max Temp | 140° F |
RPM | 1450 |
Shaft Size | 24mm |
Shaft Version | Neutral Shaft |
Shaft Type | Solid |
Market | Commercial |
Pump Type | Tri-Plex Plunger |
ANNOVI REVERBERI泵XWP70.12N系列介紹
Annovi Reverberi XWP70.12N,N 版 5/8 英寸實心軸三缸泵可直接驅動或用皮帶輪驅動。該泵采用黃銅泵頭制造,適用于各種條件。XWP70.12N 可產生高達 1740 最大 PSI、18.5 最大 GPM 的壓力,設計運行速度為 1450 RPM。XWP70.12N 采用無摩擦鋁制連桿和陶瓷活塞構造,重量為 39 磅,可提供用戶所需的性能。

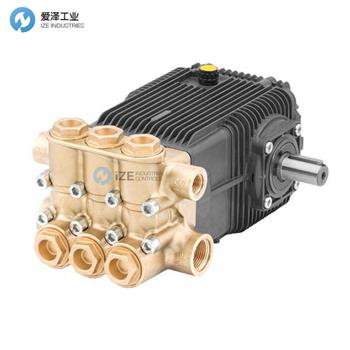

The Annovi Reverberi XWP70.12N, N version 5/8" solid shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The XWP70.12N can produce up to 1740 Max PSI, 18.5 Max GPM, and is designed to operate at 1450 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the XWP70.12N weighs in at 39 lbs and delivers the performance you demand.
ANNOVI REVERBERI泵XWP系列其他常用型號:
ANNOVI REVERBERI XWP 50.15 N DX
ANNOVI REVERBERI XWP 55.14 N DX
ANNOVI REVERBERI XWP 60.13 N DX
ANNOVI REVERBERI XWP 65.12 N DX
ANNOVI REVERBERI XWP 70.12 N DX
ANNOVI REVERBERI XWP 70.15 N DX
ANNOVI REVERBERI XWP 70.12 N DX 70L 120B 1450 UPM
ANNOVI REVERBERI PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ANNOVI REVERBERI泵XWP 70.12 N DX 70L 120B 1450 UPM的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for ANNOVI REVERBERI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ANNOVI REVERBERI泵XWP系列XWP 70.12 N DX 70L 120B 1450 UPM技術參數及介紹
