EA球閥KA110024-NE032100技術參數
SKU | KA110024-NE032100 |
Description | Ball valve-KA, 3/4 ", with drive-NE03, Brass / PTFE FKM, 24V DC, term 7sec. |
Weight [kg] | 1.92 |
Voltage | 24V DC |
Size | 3/4" |
Body material | Brass |
Body material | Messing hartverchromt |
Seals material | PTFE |
Stem seals material | PTFE/FKM |
Operation | Electrically |
Connection type | female / female |
Connection size | 3/4" |
Nominal pressure min. [bar] | 0 |
Nominal pressure max. [bar] | 16 |
Body test pressure PT [bar] | 24 |
Temperature range min. [°C] | -20 |
Temperature range max. [°C] | +70 |
Media temperature min. [°C] | -20 |
Media temperature max. [°C] | +120 |
EA球閥KA110024-NE032100產品介紹

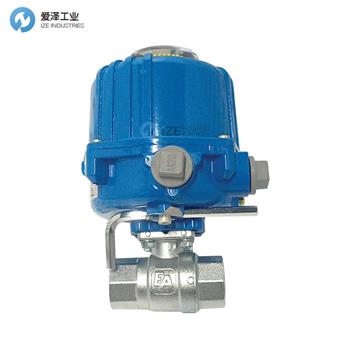

黃銅制成的 2 通球閥，帶有符合 ISO 5211 標準的安裝墊和直接安裝的電動執行器。2 件式閥體設計（螺紋式），免維護，具有完整的圓柱形孔，并根據 AD 認證 A4 進行沖壓。用于關閉中性氣體和液體。
NE 型執行器是高效的 90°電動執行器，用于在開 - 關操作中驅動蝶閥和球閥。所有 NE 執行器均具有堅固防水的機身、熱過載保護和防止冷凝的加熱裝置，以確保高耐用性。所有標準 NE 執行器均配備 2 個附加限位開關、手動超控和光學位置指示器，受主體頂部玻璃蓋的保護。
2-way ball made of brass with mounting pad according to ISO 5211 and direct mounted electrically actuator. 2-parts body design (screwed), maintenance free, with full cylindrical bore and stamped according to AD-approval A4. For shut-off of neutral gases and liquids.
The actuators model NE are efficient 90 ° electric actuators for the actuation of butterfly valves and ball valves in OPEN-CLOSE operation. All NE-actuators have a solid and waterproof body, thermical overload protection and a heating device preventing condensation to ensure high durability. All standard NE-actuators are equipped with 2 additional limit switches, manual override and an optical position indicator, protected under a glass cap on top of the body.
EA球閥KA系列其他常用型號：
EA KA110024-NE032100
EA KA110025-NE054100
EA KA110023-NE054100
EA KA110027-NE054100
EA KA110026-NE054100
EA KA110028-NE054100
EA KA110029-NE054100
EA KA110030-NE054100
EA KA110024-NE054100
EA KA110025-NE032100
EA KA110025-NE052100
