ANNOVI REVERBERI泵XWL-SS 42.15N技術參數
Technical specifications | |
AR Code | 21704 |
Version | N |
Max flow (lpm) | 42 |
Max flow (gpm) | 11.09 |
Max Pressure (bar) | 150 |
Max Pressure (psi) | 2200 |
Power (Hp) | 15 |
Power (Kw) | 11 |
RPM | 1450 |
Net weight (Kg) | 18 |

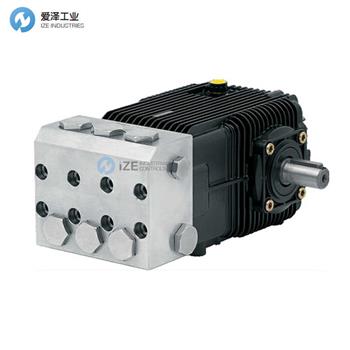

ANNOVI REVERBERI泵XWL-SS 42.15N產品介紹
3 活塞往復泵，適用于需要更高水平防腐蝕和氧化保護的清潔裝置和工業系統。泵體、端板和側蓋采用壓鑄鋁制成，具有保護性電泳涂層。泵頭采用堅固的 AISI 加工而成 316L 鋼塊，可抵抗鹽和酸性環境?；钊汕B桿機構驅動。壓鑄特殊低摩擦鋅鋁合金連桿。雙墊片密封系統，最大限度地減少漏水。軸經過熱處理 壓制鋼具有出色的機械強度、超大摩擦軸承、一件式陶瓷活塞。
3-piston reciprocating pumps for use on cleaning units and industrial systems requiring a higher level of protection against corrosion and oxidation." Pump body, end plate and side covers in die-cast aluminium with protective electro-phoresis coating. Head machined from solid AISI 316L steel block for resistance to saline and acid environments. Pistons driven by crank-connecting rod mechanism. Connecting rods in die-cast special low-friction zinc-aluminium alloy. Double gasket sealing system to minimise any water leaks. Shaft in heat-treated pressed steel for excellent mechanical strength. Oversized friction bearings. One-piece ceramic pistons.
ANNOVI REVERBERI泵XWL-SS系列其他常用型號：
ANNOVI REVERBERI XWL-SS 33.06 N
ANNOVI REVERBERI XWL-SS 33.08 N
ANNOVI REVERBERI XWL-SS 26.06 N
ANNOVI REVERBERI XWL-SS 30.09 N
ANNOVI REVERBERI XWL-SS 42.05 N
ANNOVI REVERBERI XWL-SS 42.15 N
ANNOVI REVERBERI XWL-SS 50.07 N
ANNOVI REVERBERI XWL-SS 50.15 N
ANNOVI REVERBERI XWL-SS 50.20 N
