AVENTICS換向閥5728410620技術參數
Specifications | |
Activation | Electrically |
Nominal flow Qn | 200 l/min |
Switching principle | 4/2 |
Compressed air connection output | ? 6x1 |
Working pressure min. | 1.8 bar |
Working pressure max | 10 bar |
DC operating voltage | 24 V |
Voltage tolerance DC | -10% / +10% |
Manual override | with detent |
Electrical connection type | Plug |
Electrical connection size | EN 175301-803, form C |
Actuating control | Double Solenoid |
Sealing principle | Soft Seal |
Pilot | Internal |
Pilot valve width | 22.5 mm |
Valve type | Diaphragm poppet valve |
Connection type | Pipe connection |
Control pressure min. | 1.8 bar |
Control pressure max. | 10 bar |
Min. ambient temperature | -15 °C |
Max. ambient temperature | 50 °C |
Min. medium temperature | -15 °C |
Max. medium temperature | 50 °C |
Medium | Compressed air |
Max. particle size | 50 μm |
AVENTICS換向閥5728410620產品介紹

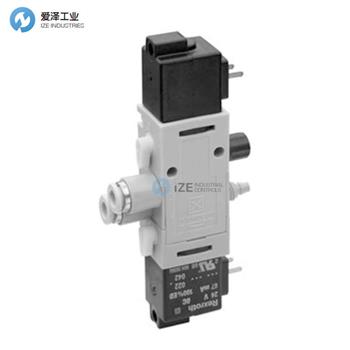

AVENTICS? 4/2 方向閥，840 系列 5728410620
特點
? 堅固的聚合物外殼
? 適用于所有空氣質量
? 始終保持高重復性
? 可進行底板組裝和塊組裝
? 還提供帶 UL 和 ATEX 線圈的版本
AVENTICS? 4/2-directional valve, Series 840 5728410620
Features
? Robust polymer housing
? Suitable for all air qualities
? For consistently high repeatability
? Base plate assembly and block assembly possible
? Versions also available with UL and ATEX coils
AVENTICS換向閥840系列其他常用型號：
AVENTICS 5728410410
AVENTICS 5728410420
AVENTICS 5728410620
AVENTICS 5728415420
AVENTICS 5728415470
AVENTICS 5728415480
AVENTICS 5728415680
AVENTICS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS換向閥5728410620的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
AVENTICS換向閥5728410620技術參數及介紹
