TOGNELLA閥FT-291 1/4″G技術參數
TYPE | 14 |
|
A1 UNI338 | 1/4"G | |
A2 UNI 339 | 1/4"Gc | |
B | 14 | |
ΦC | 5.6 | |
D | 22.0 | |
E | 40 | |
ΦF | 34 | |
G | 10 | |
H | M15x1 |
TOGNELLA閥介紹
Technical description

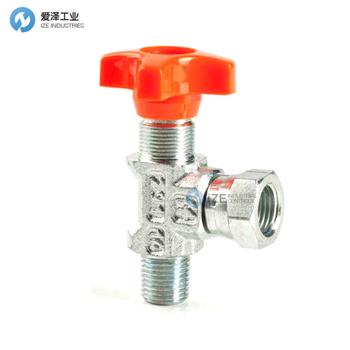

The gauge isolator needle valves FT 291 (90° angle) are normally used to protect the pressure gauge as they have the double function of dampening pressure shock, when opening, and of isolating it from pressure line Moulded in high-resistance steel, protected by an accurate treatment, subjected to strict tests, they ensure reliability and long life. A rotating swivel nut allows the user to plug the manometer, directing it to the more suitable position, with a single blocking operation. The sealing, supplied as standard, and inserted in the nut, prevents any leakages between the connection and the gauge. For pressure gauge with taper threads, it will be necessary to use copper washers FT 1201 shown on the technical catalogue and (to be requested separately). Equipped with connectors FT 299-24, they also allow the connection with 1/2” BSP port (as an alternative we recommend the use of the series FT 290-12). Suitable for pressure up to 400 bar and temperature from -20° to +100° they can be panel mounted by use of panel nut (G), supplied on request.
技術說明
壓力表針閥 FT 291（90° 角）通常用于保護壓力表，因?yàn)樗鼈兙哂须p重功能，即在打開時抑制壓力沖擊，并將壓力表與壓力管線隔離。 經過嚴格的測試，它們確保了可靠性和長壽命。 旋轉的旋轉螺母允許用戶通過一次阻塞操作來插入壓力計，將其引導至更合適的位置。 密封件按標準提供并插入螺母中，可防止連接和儀表之間出現任何泄漏。對于錐螺紋壓力表，需要使用技術目錄中所示的銅墊圈 FT 1201 和（需單獨索?。?。 配備連接器 FT 299-24，它們還允許與1/2” BSP 端口連接（作為替代方案，我們建議使用 FT 290-12 系列）。 它們適用于高達400 bar 的壓力和 -20° 至 +100°的溫度，可使用按要求提供的面板螺母 (G) 進行面板安裝。
TOGNELLA閥FT2270/5系列其他常用型號：
TOGNELLA FT-291 1/4″G
