BUSAK+SHAMBAN U-Cup封RU3100280-Z20技術參數
Installation Dimensions | |
Rod Diameter, dN f8/h9 | 28.0 mm |
Groove Diameter, D1 H10 | 38.0 mm |
Groove Width, L +0,2 | 8.0 mm |
Seal Width, B | 7.3 mm |
Split groove | Yes |
for telescope cylinders | No |
BUSAK+SHAMBAN U-Cup封RU系列介紹

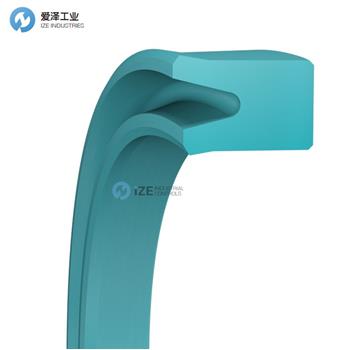

Today U-Cups are used primarily as seals for piston rods in hydraulic cylinders. U-Cups in polyurethane are proven elements, due to their good mechanical properties, for standard cylinder construction, particularly for mobile hydraulics under rough operating conditions. The U-Cup is a single lip seal.
The U-Cup type RU0is installed as a single-acting single-lip compact seal. The seal is installed with a simple snap fitting and seals statically on the outside diameter via a fixed seat. It has an asymmetric seal lip profile with shortened inner lip. This form can absorb deflections in the piston rod more easily than, e.g. U-Cup Form RU2 with its more rigid lip geometry. In pressure-free state, it exhibits lower frictional forces than double-lipped U-Cups.
Technical Data
Operating pressure: Max. 40 MPa
Speed: Up to 0.5 m/s
Temperature: Use in mineral oils:-30°C to + 80°C
Media: Mineral oil-based hydraulic fluids.
U形圈主要用做液壓缸中的活塞桿密封件，聚氨酯橡膠的U-形圈是經過考驗的元件，由于其良好的機械特性,用在標準缸結構中，特別用于惡劣工作條件下的工程機械液壓缸。RU0 系列U形圈是一種單唇密封件。
RU系列U形圈是一種作為單作用、單唇、緊湊型密封件來使用的。這種密封件可用一種簡單的方法來安裝，并通過密封件外徑上的過盈配合使其定位，形成靜態密封。它有一個非對稱的密封唇，且內唇較短。這種結構形式的U形圈比RU2系列更容易吸收活塞桿的震動和彎曲變形。在沒有壓力時，它的摩擦力比雙唇U形圈的要小得多。
技術數據
工作壓力：最大 40 MPa
速度：高達 0.5 m/s
溫度：在礦物油中使用-30°C 至 +80°C
介質：礦物油基液壓流體。
BUSAK+SHAMBAN U-Cup封RU系列其他常用型號：
BUSAK+SHAMBAN(B+S) RU3100280-Z20
BUSAK+SHAMBAN(B+S) RU0000060
BUSAK+SHAMBAN(B+S) RU0100060
BUSAK+SHAMBAN(B+S) RU0000080
BUSAK+SHAMBAN(B+S) RU0100080
BUSAK+SHAMBAN(B+S) RU0200080
BUSAK+SHAMBAN(B+S) RU0100100
BUSAK+SHAMBAN(B+S) RU0200100
BUSAK+SHAMBAN(B+S) RU0000100
BUSAK+SHAMBAN(B+S) RU0100120
BUSAK+SHAMBAN(B+S) RU0200120
BUSAK+SHAMBAN(B+S) RU0300120
BUSAK+SHAMBAN(B+S) RU0000120
BUSAK+SHAMBAN(B+S) RU0000140
BUSAK+SHAMBAN(B+S) RU0100140
BUSAK+SHAMBAN(B+S) RU0200140
BUSAK+SHAMBAN(B+S) RU0000150
BUSAK+SHAMBAN(B+S) RU0100150
BUSAK+SHAMBAN(B+S) RU0100160
BUSAK+SHAMBAN(B+S) RU0000160
BUSAK+SHAMBAN(B+S) RU0200160
BUSAK+SHAMBAN(B+S) RU0300160
