DIOTTALEVI氣缸320系列技術參數
FUNCTIONAL CHARACTERISTICS | |
fluid | ?filtered air with or without lubrication |
max pressur | 10 ba |
temperature | 0℃÷80℃ (-20℃with dry air) |
MANUFACTURING CHARACTERISTICS | |
heads | in black painted die-cast aluminum alloy |
sleeve | in extruded aluminum alloy calibrated and hard oxidized inside-out |
stem | in chromed C40 steel (stainless steel upon request) |
piston | monoblock in special NBR rubber vulcanised on a metal disc |
rod guide bushing | self-lubricating with steel reinforcement lined internally in PTFE |
rod sealing gaskets | in special NBR rubber |
other gaskets | in NBR rubber |
DIOTTALEVI氣缸320系列介紹

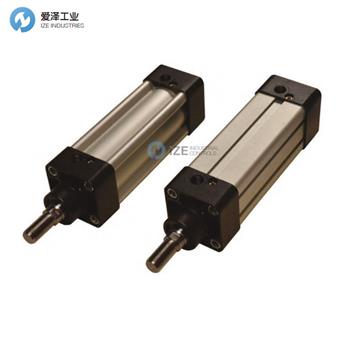

Series 320
TECHNICAL CHARACTERISTICSDouble-acting with limit switch deceleration (without decelerator on request), also operates without lubrication, end cover directly fixed on the tube (D. 32 - 125) by tie rods (D. 160 - 200).
320系列
雙作用，帶限位開關減速（根據要求不帶減速器），也無需潤滑即可運行，端蓋通過拉桿（D. 160 - 200）直接固定在管（D. 32 - 125）上。
DIOTTALEVI氣缸320系列其他常用型號：
Diottalevi 320.01.032.550
Diottalevi 320.01.050.350
Diottalevi 320.02.050.120
Diottalevi 320.010.032.1440
DIOTTALEVI Pneumatic cylinders NEW + ORIGINAL+ ONE YEAR WARRANTY
