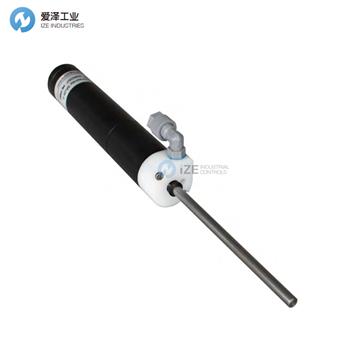

ECOLAB轉子噴霧2.950.59產品介紹
Artikel-Nr. 295059
(passend zum Steuerger?t Multiline 6000)
貨號 295059
(適用于控制單元 Multiline 6000)
ECOLAB轉子噴霧應用
area of application
The Rotorspray Multi 2 for use with the Multiline 1000 or Multiline 6000 control units is used for the automatic application of adhesives, sealants and lubricants in bores with a diameter of 8 to 100 mm. The automotive sector is an important area of application.
The rotor spray is usually used together with an EP SV dosing valve (article numbers 295241 / 295242 / 295243 / 295244) and the Multiline 1000 or Multiline 6000 control units.
he product (reactive adhesives, oils or other liquids) is conveyed into the rotating centrifugal head via the dosing tip of the dosing valve.
Due to the rotation of the centrifugal head and its construction, the product is applied in a ring shape to the hole to be wetted. It should preferably be used horizontally or from above.
Only low-viscosity adhesives or oils can be processed with the rotor spray. Some fats can also be processed.
The size of the centrifugal head and the length of the shaft are variable within wide limits in order to be able to take into account the different bore diameters and lengths to be wetted.
The Multiline 1000 or Multiline 6000 control units are suitable for the time-coordinated activation of the dosing valve and Rotorspray.
應用領域
與 Multiline 1000 或 Multiline 6000 控制單元一起使用的 Rotorspray Multi 2 用于在直徑為 8 至 100 毫米的孔中自動涂抹粘合劑、密封劑和潤滑劑。 汽車行業是一個重要的應用領域。
轉子噴霧通常與 EP SV 計量閥(商品編號 295241 / 295242 / 295243 / 295244)和 Multiline 1000 或 Multiline 6000 控制單元一起使用。
產品(反應性粘合劑、油或其他液體)通過計量閥的計量尖端輸送到旋轉的離心頭中。
由于離心頭的旋轉及其構造,產品以環形形式應用于要潤濕的孔中。 它最好水平使用或從上方使用。
轉子噴霧只能處理低粘度的粘合劑或油。 一些脂肪也可以加工。
離心頭的尺寸和軸的長度在很寬的范圍內是可變的,以便能夠考慮到不同的孔徑和要潤濕的長度。
Multiline 1000 或 Multiline 6000 控制單元適用于按時間協調激活計量閥和 Rotorspray。
ECOLAB轉子噴霧其他常用型號:
ECOLAB 2.950.59
ECOLAB rotor spray NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ECOLAB轉子噴霧2.950.59的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for ECOLAB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ECOLAB轉子噴霧2.950.59技術參數及介紹
