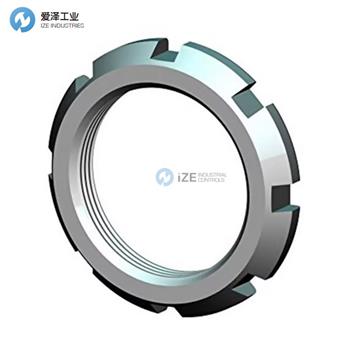

WHITTET-HIGGINS防松螺母PN-15產品參數
Identificatio | PN-15 |
Thread | 2.933-12 |
Outside Dia (inches) | 3.875 |
Face Dia (inches) | 3.563 |
Width (inches) | 0.604 |
Axial Load (lbs) | 49800 |
Lockwasher | PW-15 |
WHITTET-HIGGINS防松螺母PN系列產品介紹
This series of precision locknuts has been established by Whittet-Higgins as a readily available product to meet the needs for exceptional precision which the N-AN locknuts to SAE, ABEC and AFBMA standards to not meet. Manufacturers of machine tools, precision machinery, automation equipment use these locknuts routinely to assure greater life to their bearing and power transmission assemblies. These locknuts are fully interchangeable where N-AN locknuts have been used. The differences are better surfaces, closer tolerances and more locking positions. The extra precise features greatly reduce assembly misalignment to provide smoother, quieter operation and longer assembly life. Precision is important in extremely high speed bearing applications of turbo machinery, aircraft accessory drives, electronic machinery, instrumentation and computers.
The runout and parallelism of the bearing face to the pitch diameter of the threads have a one revolution total indicator reading no less than: .0005 inches for sizes 00 through 06, .001 inches for sizes 07 through 22, .002 inches for sizes 24 through 40.
該系列精密鎖緊螺母由 Whittet-Higgins 建立，作為一種現成的產品，可滿足 SAE、ABEC 和 AFBMA 標準的 N-AN 鎖緊螺母無法滿足的異常精度需求。機床、精密機械、自動化設備的制造商經常使用這些鎖緊螺母來確保其軸承和動力傳輸組件的使用壽命更長。在使用 N-AN 鎖緊螺母的情況下，這些鎖緊螺母可以完全互換。不同之處在于更好的表面、更小的公差和更多的鎖定位置。額外的精確功能大大減少了裝配錯位，從而提供更平穩、更安靜的操作和更長的裝配壽命。精度在渦輪機械、飛機附件驅動、電子機械、儀器儀表和計算機的超高速軸承應用中非常重要。
軸承面與螺紋中徑的跳動和平行度具有一圈總指示器讀數不小于： 00 至 06 尺寸為 0.0005 英寸，07 至 22 尺寸為 0.001 英寸，24 尺寸為 0.002 英寸通過 40。
WHITTET-HIGGINS防松螺母PN系列其他型號：
WHITTET-HIGGINS PN-10
WHITTET-HIGGINS PN-11
WHITTET-HIGGINS PN-12
WHITTET-HIGGINS PN-13
WHITTET-HIGGINS PN-14
WHITTET-HIGGINS PN-15
WHITTET-HIGGINS PN-16
WHITTET-HIGGINS PN-17
WHITTET-HIGGINS PN-18
WHITTET-HIGGINS PN-19
WHITTET-HIGGINS Locknuts NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于WHITTET-HIGGINS防松螺母PN-15的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WHITTET-HIGGINS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
