WHITTET-HIGGINS螺母CNM-09產品參數
Identification | Thread | Outside Dia | Face Dia | Width | Axial Load | Lockscrew |
CNM-09 | M45 x 1,5 | 68,1 | 57,9 | 13,0 | 124 | M6 |
CNM-10 | M50 x 1,5 | 76,2 | 61,7 | 13,0 | 139 | M6 |
CNM-11 | M55 x 2,0 | 82,6 | 67,3 | 18,0 | 210 | M8 |
CNM-12 | M60 x 2,0 | 88,9 | 72,1 | 18,0 | 224 | M8 |
WHITTET-HIGGINS螺母CNM系列產品介紹

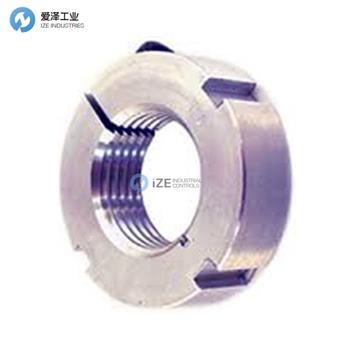

This series of CLAMP NUTS has the bearing threads specified to the ISO Metric standards, fits, and tolerances thus are fully interchangeable with metric retaining devices increasingly used in bearing and other power transmission assemblies.
The bearing face - the side with the clearance relief above the face diameter - is machined square to the axis of the pitch diameter of the threads whereby the runout for one revolution has a total indicator reading variance no greater than: 50 Microns (.002 inches) for sizes 00 to 14, 100 Microns (.004 inches) for sizes 15 to 40.
As with all precision retaining devices, care must be taken during assembly to assure premium performance. Please open and review our installation instructions for proper technique and best results.
該系列夾緊螺母具有符合 ISO 公制標準的軸承螺紋、配合和公差,因此可以與越來越多地用于軸承和其他動力傳輸組件的公制保持裝置完全互換。
軸承面 - 面直徑上方有間隙間隙的一側 - 加工成與螺紋中徑軸成直角,因此一圈的跳動具有不大于: 50 微米(0.002 英寸)的總指示器讀數偏差 ) 適用于 00 至 14 號尺寸,100 微米(0.004 英寸)適用于 15 至 40 號尺寸。
與所有精密保持裝置一樣,在組裝過程中必須小心以確保卓越的性能。 請打開并查看我們的安裝說明,以獲得正確的技術和最佳效果。
