KENNAMETAL鉆頭B041A04500CPG技術參數
 | |
SAP Material Number | 4150202 |
ISO Catalog Number | B041A04500CPG |
Grade | KC7325 |

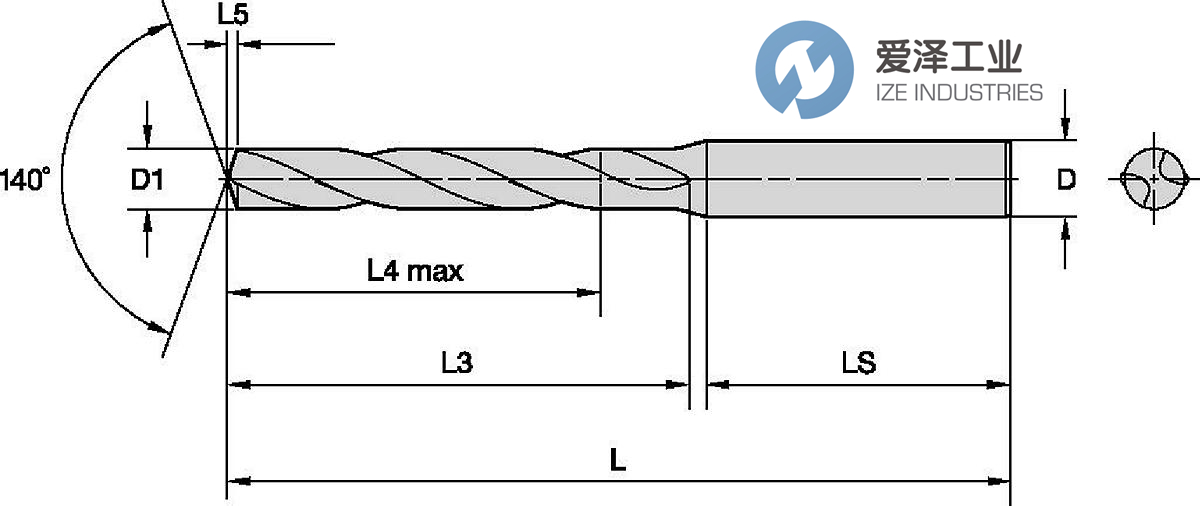

[D1] Drill Diameter M | 4.5000 mm |
[L] Overall Length | 66.0000 mm |
[L3] Flute Length | 24.0000 mm |
[L4] Maximum Drilling Depth | 17.0000 mm |
[L5] Drill Point Length | 0.7400 mm |
[LS] Shank Length | 36.0 mm |
[D] Adapter / Shank / Bore Diameter | 6.0 mm |
KENNAMETAL鉆頭B041A04500CPG產品介紹
適用于各種材料的通用 SC 鉆頭。
無邊距設計可減少摩擦和熱量，從而延長刀具壽命。
用于微鉆的優化切屑設計可確保切屑在鉆頭中心自由流動。
不間斷的直切削刃不會產生磨損起點，并且能夠均勻分布切削力，從而延長所有材料的刀具壽命并減少切削刃上的崩刃。
KC7325包含適用于寬帶應用的雙層涂層，TiN 頂層用作磨損指示器，可以更輕松地監控難以看到的小型鉆頭。

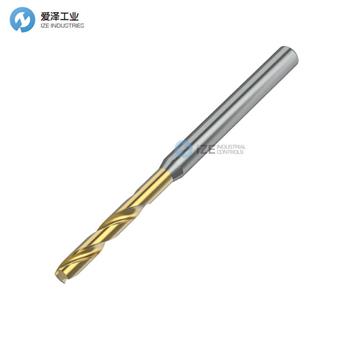

General purpose SC drill for a wide range of materials.
Marginless design for reduced friction and heat — thus longer tool life.
Optimized gashing design for microdrilling ensures free flow of chips in the center of the drill.
Uninterrupted straight cutting lip allows no starting point for wear and enables even distribution of cutting forces for longer tool life in all materials and less chipping on cutting edge.
KC7325? grade contains a double coating for broad-band applications, and a TiN top layer serves as a wear indicator for easier monitoring of small drills, which can be difficult to see.
KENNAMETAL鉆頭B041A系列其他常用型號：
KENNAMETAL B041A01191CPG
KENNAMETAL B041A01200CPG
KENNAMETAL B041A01300CPG
KENNAMETAL B041A01321CPG
KENNAMETAL B041A01397CPG
KENNAMETAL B041A01400CPG
KENNAMETAL B041A01500CPG
KENNAMETAL B041A01600CPG
KENNAMETAL B041A01700CPG
KENNAMETAL B041A01800CPG
KENNAMETAL B041A01900CPG
KENNAMETAL B041A01984CPG
KENNAMETAL B041A04500CPG
KENNAMETAL DRILL NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KENNAMETAL鉆頭B041A04500CPG KC7325的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KENNAMETAL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
KENNAMETAL鉆頭B041A04500CPG KC7325技術參數及介紹
