CROSBY臥式夾鉗IPHGUZ系列選型

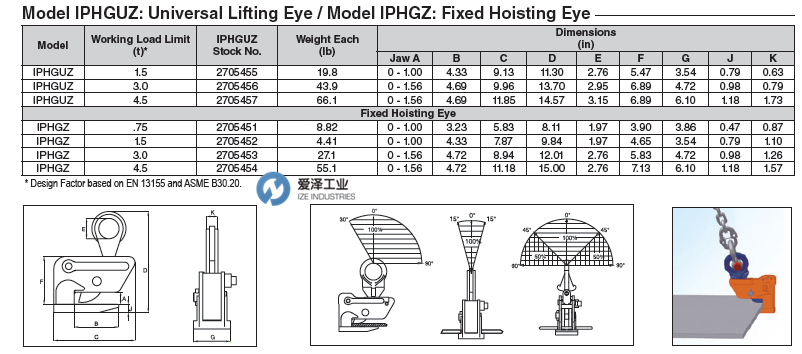

Working Load Limit (t)* | IPHGUZ | Weight Each (lb) | Dimensions (in) | ||||||||||
Model | Stock No. | Jaw A | B | C | D | E | F | G | J | K | |||
IPHGUZ | 1.5 | 2705455 | 19.8 | 0 - 1.00 | 4.33 | 9.13 | 11.3 | 2.76 | 5.47 | 3.54 | 0.79 | 0.63 | |
IPHGUZ | 3 | 2705456 | 43.9 | 0 - 1.56 | 4.69 | 9.96 | 13.7 | 2.95 | 6.89 | 4.72 | 0.98 | 0.79 | |
IPHGUZ | 4.5 | 2705457 | 66.1 | 0 - 1.56 | 4.69 | 11.85 | 14.57 | 3.15 | 6.89 | 6.1 | 1.18 | 1.73 | |
Fixed Hoisting Eye | |||||||||||||
IPHGZ | 0.75 | 2705451 | 8.82 | 0 - 1.00 | 3.23 | 5.83 | 8.11 | 1.97 | 3.9 | 3.86 | 0.47 | 0.87 | |
IPHGZ | 1.5 | 2705452 | 4.41 | 0 - 1.00 | 4.33 | 7.87 | 9.84 | 1.97 | 4.65 | 3.54 | 0.79 | 1.1 | |
IPHGZ | 3 | 2705453 | 27.1 | 0 - 1.56 | 4.72 | 8.94 | 12.01 | 2.76 | 5.83 | 4.72 | 0.98 | 1.26 | |
IPHGZ | 4.5 | 2705454 | 55.1 | 0 - 1.56 | 4.72 | 11.18 | 15 | 2.76 | 7.13 | 6.1 | 1.18 | 1.57 | |

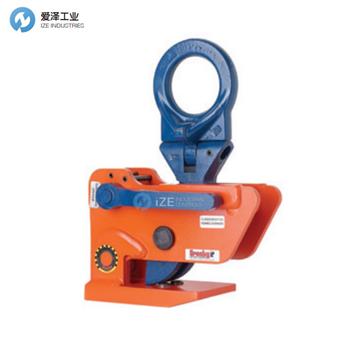

CROSBY臥式夾鉗IPHGUZ系列產品介紹及選型尺寸圖
For Horizontal Transfer - with Pretension System
? Available in capacities of 1 thru 4.5 metric tons.
? Jaw openings available: 0” to 1.57”.
? Welded alloy steel body for strength and smaller size. Forged alloy, components where required.
? Equipped with handle for easy placement.
? Individually Proof Tested to 2 times the Working Load Limit with certification.
? Company name (CrosbyIP), logo, Working Load Limit and jaw opening permanently stamped on body.
? Each product is individually serialized, with the serial number and Proof Load test date stamped on body. User manual with test certificate is included with each clamp
? Maintenance and repair kits are available.
? Manufactured by an ISO 9001 facility.
? All sizes are RFID EQUIPPED.
The IPBC horizontal lifting clamps have a pretension feature that allows the user to attach the clamps to the material for horizontal lifting and transfer of sagging and non-sagging material. These clamps may also be used to handle material that will be used in shears, bending and rolling machines or other fabrication equipment. May also be used for turning beams from the “H” into the “I” position.
The IPHGZ, IPHGUZ horizontal lifting clamps have a pretension locking feature that allows the user to attach the clamps to the material for horizontal lifting and transfer of sagging and non-sagging material. These clamps may also be used to handle material that will be used in shears, bending and rolling machines or other fabrication equipment. May also be used to move and lift structural shapes such as I-Beams, H-beams etc.
用于水平傳送-帶預緊系統
?容量為1至4.5公噸。
?可用下頜開口：0英寸至1.57英寸。
?焊接合金鋼主體，強度更高，尺寸更小。鍛造合金，根據需要提供組件。
?配有手柄，易于放置。
?單獨驗證經認證達到工作負荷極限的2倍。
?公司名稱（CrosbyIP），徽標，工作負荷極限和顎口永久印在車身上。
?每個產品都單獨序列化，序列號和Proof Load測試日期印在機身上。每個夾具均隨附帶有測試證書的用戶手冊
?提供維護和修理套件。
?由ISO 9001設施制造。
?所有尺寸均配備RFID。
IPBC水平舉升夾具具有預張緊功能，允許用戶將夾具連接到物料上，以水平舉升和轉移下垂和不下垂的物料。這些夾具還可用于處理將在剪切機，折彎機和軋制機或其他制造設備中使用的材料。也可用于將光束從“ H”位置轉到“ I”位置。
IPHGZ，IPHGUZ水平提升夾具具有預緊鎖定功能，允許用戶將夾具連接到物料上，以進行水平提升以及流掛和不流掛物料的轉移。這些夾具還可用于處理將在剪切機，折彎機和軋制機或其他制造設備中使用的材料。也可用于移動和提升I型梁，H型梁等結構形狀。
CROSBY臥式夾鉗IPHGUZ系列其他常用型號：
CROSBY 2705455
CROSBY 2705456
CROSBY 2705457
CROSBY 2705451
CROSBY 2705452
CROSBY 2705453
CROSBY 2705454
CROSBY Horizontal Clamps NEW + ORIGINAL+ ONE YEAR WARRANTY
