PHD夾鉗GRM4系列產品參數

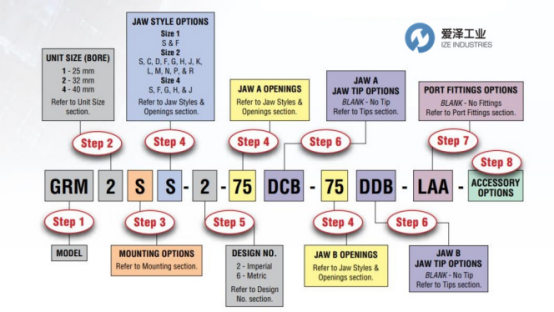

MODEL | GRM |
UNIT SIZE (BORE) | 4 - 40 mm |
MOUNTING OPTIONS | Refer to Mounting section. |
JAW STYLE OPTIONS | Size 2 S, C, D, F, G, H, J, K,L, M, N, P, & R |
DESIGN NO. | 6 - Metric |
JAW A OPENINGS | Refer to Jaw Styles & Openings section. |
JAW B OPENINGS | Refer to Jaw Styles & Openings section. |
PHD夾鉗GRM4系列產品介紹及選型

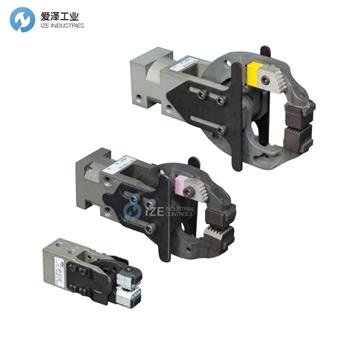

The Series GRM Clamp continues to be the industry-leading pneumatic actuator of choice for material handling solutions worldwide. Its simple design and rugged construction have proven customer satisfaction and loyalty since 1998. Three standard sizes (25, 32, and 40mm bores), 13 standard jaw styles, and countless options and accessories, make the Series GRM Clamp the most versatile and modular clamp in the world.
GRM系列夾鉗繼續成為全球物料搬運解決方案的行業領先氣動執行器。 自1998年以來，其簡單的設計和堅固的結構就已經證明了客戶的滿意度和忠誠度。三種標準尺寸（25、32和40mm內孔），13種標準鉗口樣式以及無數的選件和配件，使GRM系列夾具成為世界上用途廣泛的模塊化夾具。
Product Features
1 Fixed or spherical mounting brackets for side or rear mounting
2 Cam design locks clamp in the closed position ensuring part retention if air pressure is lost
3 Adjustable rotation stop allows for multiple jaw openings in one clamp (Sizes 2 and 4)
4 Interchangeable hardened-steel jaws minimize costly inventory and maximize wear resistance for long life
5 Field repairable in 10 minutes using metric hex wrenches
6 Adjustable hardened-steel impact plates eliminate damage to body from panel impact
7 Wide and deep jaw throats accommodate difficult clamping applications
8 Self-locking internal threads throughout eliminate need for thread locking adhesives or additional locking components
產品特色
1用于側面或背面安裝的固定或球形安裝支架
2凸輪設計將夾具鎖定在關閉位置，以確保在失去氣壓的情況下保持零件固定
3可調節的旋轉限位器允許在一個夾具中打開多個鉗口（尺寸2和4）
4個可互換的硬化鋼鉗口，可最大程度地減少昂貴的庫存，并最大限度地提高耐磨性，從而延長使用壽命
5使用公制六角扳手可在10分鐘內修復
6可調式鋼質沖擊板可消除面板沖擊對車身造成的損壞
7個寬而深的下巴喉嚨可適應困難的夾緊應用
8個自鎖內螺紋始終不需要螺紋鎖固膠或其他鎖緊組件
PHD夾鉗GRM4系列其他常見系列：
PHD GRM2SS-75DCB-75DDB-LAA-ACCESSORY
PHD GRM4TG-6-40-40
PHD clamp NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PHD夾鉗GRM4TG-6-40-40的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PHD products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
PHD夾鉗GRM4TG-6-40-40產品參數
