ELPRESS充電式壓線鉗PVX1300產品參數
Specifications |
Ergonomic design that optimizes the balance of the tool in the users hand |
Buzzing signal and flashing light if right pressure is not achieved |
LED lightning for work in dark environments |
Possibility to document each crimp for unique service control |
For service and installation use |
Crimp force 124 kN (13 ton) |
Crimps/ charge: 60-120 depending on size and temperature |
Crimp time: 4-12 s depending on size |
Working temperature -20°C to +40°C |
Environmental friendly battery, Li-Ion Makita, 3.0 Ah, 18 V |
230 VAC battery charger Li-Ion Makita, charging time 22 min |
LED indication of charge status |
For service and installation use |

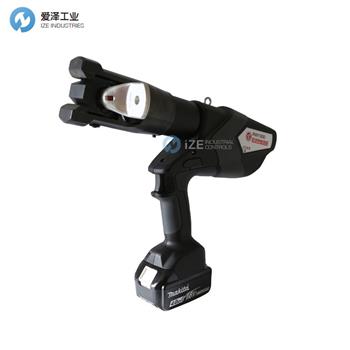

Elpress PVX1300 Battery Crimping Tool is supplied with robust plastic case, battery, charger and instruction manual |
Weight 5.4 kg (incuding battery) |
Dimensions 412 x 319 x 75 mm |
Display that gives you valuable information about your tool |
Pressure display with battery status |
Adjustable crimping operation start with optional one or two ‘click’ trigger for safer handling of the tool |
Information on when the next service is due |
ELPRESS充電式壓線鉗PVX1300產品介紹
壓接工具PVX1300具有符合人體工程學的新型設計和壓接頭，可為用戶提供增強的性能。該貨叉由100％的再生鋼制成，并經過質量和安全性測試。該工具提供2年保修。還可以在工具上設置“安全開始”（可調節的壓接操作從可選的一兩個“點擊”觸發器開始，以更安全地操作工具）。
The Crimp Tool PVX1300 has been created with a new ergonomic design & crimping head that offers you, the user, enhanced performance. The fork is made from 100% recycled steel and has been tested for quality and safety. The tool is supplied with a 2-year guarantee. There is also the possibility to set a “safety start” on the tool (adjustable crimping operation start with optional one or two ‘click’ trigger for safer handling of the tool).
ELPRESS充電式壓線鉗PVX1300其他常見型號：
ELPRESS PVX1300
ELPRESS PVX1300DB
ELPRESS PVX1300-US
ELPRESS PVX1300C2
ELPRESS Battery Crimping Tool NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ELPRESS充電式壓線鉗PVX1300的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ELPRESS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
