USATOLERANCE公差環AN200050S技術參數
| |
PART NUMBER | AN200050S |
RADIAL CAPACITY (lbs) | 1100 |
TYPICAL BORE FOR TORQUE | TC (in-lbs): 675 |
TYPICAL BORE FOR BEARING MOUNT | D min (in): 2.092 |
d nominal | 2 |
d (in) | 2.000 |
w2 (in) | 0.500 |
USATOLERANCE公差環AN系列介紹

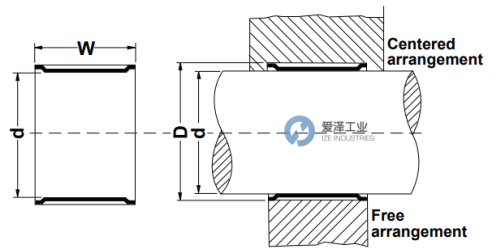

AN 型擋圈在自由狀態下呈“開口”狀態，因此當安裝在孔內時，擋圈將與孔徑貼合并自保持。如果與定心或半定心配置一起使用，則在裝配配合機械零件時無需對擋圈進行進一步處理。如果與自由配置一起使用，則在裝配配合機械零件時，必須對擋圈進行軸向支撐。
AN 型擋圈的長度應切割至合適的尺寸，以便安裝在“標稱”周長之外。AN 型擋圈的使用示例包括安裝軸承外圈，或?qū)L(fēng)扇或皮帶輪安裝到常用英寸或公制直徑的軸上。
The AN style ring is “open” in the free state so that when installed inside a bore the ring will conform to that bore and be self retaining. If used with the centered or half-centered arrangement no further handling of the ring is necessary during assembly of the mating machine parts. When used with the free arrangement, the ring must be supported axially during assembly of the mating machine parts.
The AN style is cut to length so as to fit outside a“nominal” circumference. Examples for use of the AN style include mounting a bearing outer race, or mounting a fan or pulley to a shaft of common inch or metric diameter.
USATOLERANCE公差環AN系列選型
USATOLERANCE公差環AN系列其他常用型號：
USATOLERANCE AN200050S
USATOLERANCE AN4X8C
USATOLERANCE AN018025C
USATOLERANCE AN6X6C
USATOLERANCE AN025025C
USATOLERANCE AN156050S
USATOLERANCE AN40X12S
USATOLERANCE AN162050S
USATOLERANCE AN42X13S
USATOLERANCE AN175050S
USATOLERANCE AN47X14S
USATOLERANCE AN187050S
USATOLERANCE Tolerance ring NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于USATOLERANCE公差環AN200050S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for USATOLERANCE products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: jjxdch.cn.
USATOLERANCE公差環AN系列AN200050S技術參數及介紹
