AMC MECANOCAUCHO防震支架177022規格
Type | MEDIUM RECT. |
Tightening torque Max (Nm) | 71 |
Weight (gr) | 1050 |
Max.Load (kg) | 100 |
Shore | 40 Sh |
Code | 177022 |

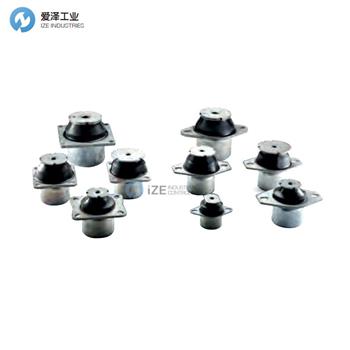

AMC MECANOCAUCHO防震支架MEDIUM RECT系列介紹
AMC MECANOCAUCHO? 液壓支座將彈簧和液壓阻尼器結合在一個緊湊的單元中。在制造過程中，AMC可以獨立調整剛度和阻尼，這為隔離器的動態特性與應用需求相匹配提供了靈活性。
支座的內部結構采用了一種新系統，將橡膠與金屬部件結合在一起，以消除在支座承受高強度沖擊時阻尼液泄漏的情況。
為了實現良好的隔離，需要低阻尼；而為了進行運動控制，則需要高阻尼。MECANOCAUCHO 液壓支座可以調和這些矛盾的要求。液體腔被分為兩個腔室，中間有一個小孔，當彈性體元件運動時，液體從一個腔室流向另一個腔室，從而耗散能量并在系統中產生阻尼。
這些支座對于那些需要良好隔離的軟隔離器但在瞬態（沖擊）輸入或隔離系統的共振頻率附近操作時仍需運動控制的安裝特別有吸引力。
技術特性
AMC-MECANOCAUCHO? 液壓支座具有聯鎖金屬部件，為移動應用提供了安全保護。該裝置可在支座受到沖擊輸入時限制過大的垂直運動。
金屬部件具有足夠的厚度和強度，能夠承受越野車輛應用中的沖擊輸入，并且具有符合RoHs要求的戶外防腐蝕處理。
The AMC MECANOCAUCHO? Hydraulic mounts combine a spring and a hydraulic damper in a single compact unit. Both the stiffness and the damping can be tuned independently by AMC during the manufacturing process, this provides flexibility in matching the dynamic characteristics of the isolator to the requirements of the application.
The internal architecture of the mount is composed of a new system that bonds the rubber to the metal parts in order to eliminate any leakage of the dampening fluid when the mount is submitted to high magnitude shocks.
For good isolation, low damping is required. For motion control, high dampening is required. The MECANOCAUCHO hydraulic mounts accommodate these conflicting requirements. The fluid cavity is divided into two chambers with an orifice in between, so that motion of the elastomeric element causes fluid to flow from one chamber to the other, dissipating energy and this creating damping in the system.
These mounts are particularly interesting far those installations that require a soft isolator far good isolation but still require motion control under transient (shock} inputs or when operating close to the isolation system's resonant frequency.
Technical characteristics
The AMC-MECANOCAUCHO? Hydraulic mounts have an interlocking metal component that provides fail-safe protection for mobile applications. This device limits excessive vertical movement when the mountings are subjected to shocks inputs.
The metal parts are suitably thick and robust to withstand Off Road vehicle application shock inputs and also have an outdoor anti-corrosive treatment fully compliant with RoHs
AMC MECANOCAUCHO防震支架其他常用型號：
AMC 177004
AMC 177005
AMC 177006
AMC 177011
AMC 177022
AMC 177021
AMC 177023
AMC 177024
AMC 177045
AMC 177046
AMC 177047
AMC 177048
AMC MECANOCAUCHO ANTI VIBRATION MOUNTS NEW + ORIGINAL+ ONE YEAR WARRANTY
