HAZET工具推車178N-7/204技術參數
Technical Data | |
Number of tools | 204 |
Drawers, high | 2× 165?x?527?x?348 mm |
HP ratchet included | With HiPer reversible ratchet |
Drawers, flat | 5× 80?x?527?x?348 mm |
Length x width x height | 781 x 498 x 1037 mm |
Drawers total | 7 |
Loading capacity of high drawer | 20 kg |
(Drawer) size for plastic drawer insert | 3/3 |
Drawer dimensions | 527 x 348 |
Inner Packaging | Safety-Insert-System, 2-component soft foam insert |
Drawer sliding-out % | 1 |
Drawer guide | With roller guides |
Drawer locking | Individual drawer locking prevents unwanted drawer opening |
Drawer lock | Central locking with cylinder lock |
Worktop | Plastic, resistant to solvent, with integrated storage wells |
Worktop height | 1035 mm |
Loading capacity (static) | 480 kg |
Total loading capacity (dynamic) | 480 kg |
Number of swivel castors | 2 |
Diameter of swivel castors | 125 mm |
Number of fixed castors | 2 |
Diameter of fixed castors | 125 mm |
Number of castors with brake | 2 |
Colour | HAZET blue |
HAZET工具推車178N-7/204產品介紹
產品信息
工具推車
5個平抽屜和2個高抽屜
配有204件工具組合，采用安全插入系統軟泡沫插片
大型滾珠軸承輪（125 毫米），即使在高動態負載下也易于操控
2個帶雙剎車的萬向輪：
剎車輪可防止不必要的滾動
剎車萬向軸承可防止萬向輪轉動，例如在傾斜表面上
保護環可防止灰塵和纖維進入
彈性輪子可實現平穩移動
雙重鎖定概念：
中央鎖定，配有圓柱鎖和2把折疊鑰匙
單獨抽屜鎖定可防止不必要的抽屜打開
100% 滑出，采用滾珠導軌
德國制造的工具推車

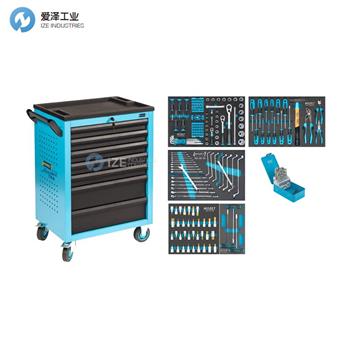

Product information
Tool trolley
5 flat and 2 high drawers
Complete with 204-piece tool assortment in Safety-Insert-System soft foam insert
Large ball-bearing wheels (125 mm), easy manoeuvrability, even with high dynamic load
2 swivel castors with dual brake:
Braked castors prevent rolling away
Braked swivel bearings prevent the swivel castors from turning, e.g. on inclined surfaces
Protective ring prevents dirt and threads from getting in
Elastic castors enable smooth movement
Two-stage locking concept:
Central locking, lockable with cylinder lock and 2 folding keys
Individual drawer locking prevents unwanted drawer opening
100% sliding-out with ball-bearing guiding rails
Tool trolley Made in Germany
