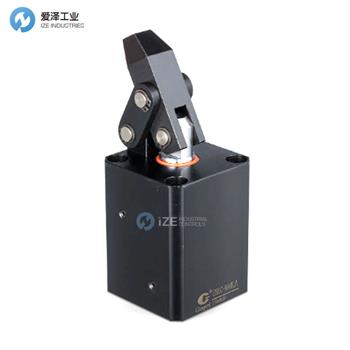

CLAMPTEK油壓缸CHLC-FAM50介紹
Series | CHLC |
Type | FAM: Flange with manifold |
Hydraulic cylinder inside diameter | 50:Φ50 |
CLAMPTEK油壓缸CHLC系列介紹
產品信息
本液壓缸采用杠桿夾緊機構,夾緊力大于擺動夾緊,活塞桿推出時,缸體處于夾緊狀態,主要零部件外置,便于產品維護。CHLC液壓缸采用工業級碳鋼制造,耐用性強,使用壽命長?;钊麠U采用熱處理45鋼,表面鍍鉻。
最大工作壓力:70 kgf/cm2
最小工作壓力:10 kgf/cm2
雙作用
Product Information
The clamping mechanism used on this hydraulic cylinder is based on the principle of leverage. The clamping force of the leverage clamps is greater than the swing clamps. When the piston rod is pushed out, the cylinder is in a clamped state. The main component parts are externally installed which is optimal for product maintenance. The CHLC hydraulic cylinders are manufactured with industrial grade carbon steel for increased durability and extended product lifespan. The piston rod is made of heat-treated 45 steel and chrome-plated surface.
Max. operating pressure: 70 kgf/cm2
Min. operating pressure: 10 kgf/cm2
Double acting
CLAMPTEK油壓缸其他常用型號:
CLAMPTEK CHLC-FAM25
CLAMPTEK CHLC-FAM32
CLAMPTEK CHLC-FAM40
CLAMPTEK CHLC-FAM50
CLAMPTEK Hydraulic cylinder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CLAMPTEK油壓缸CHLC-FAM50的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for CLAMPTEK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
