DYNAINSTRUMENTS流量計DYNAguard S系列技術參數
Materia | |
Housing | Edelstahl 1.4305 (ASIS 303) |
Isolation (standard) | PA (Standard) |
Sealing (standard) | NBR (Standard) |
Ambient cond. | |
Temperature | -20 °C ... +70 °C (-4 °F ... +158 °F) |
Degree of protection | IP 67 (EN 60529) |
EMC | Nach EN 61326-1 |
Process cond. | |
Sensitivity | 0,1 mg/m3 |
Temperature | Standard: max. +70 °C (+158 °F) |
Pressure | Max. 10 bar (140 lbs) |
Output | |
DYNAguard S01 | Relais: max. 48 V AC/DC, 1A |
DYNAguard S02 | Transistor: galvanisch getrennt |
DYNAguard S20 | 4 - 20 mA, galvanisch getrennt |
Supply voltage | |
DYNAguard S01/02 | 17 - 31 V DC, max. 60 mA |
DYNAguard S20 | 17 - 31 V DC, max. 90 mA |
Adjustment | |
Sensitivity | 1 - 180.000 |
Damping | 0 - 10 s (S01/02), 0 - 180 s (S20) |
Switchpoint | 1 - 10 (DYNAguard S01/02) |
Zero set | 4 mA (DYNAguard S20) |
Switch output | High/low switchable |

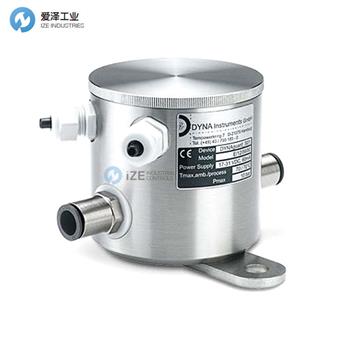

DYNAINSTRUMENTS流量計DYNAguard S系列介紹
流量開關DYNAguard S用于監測柔性軟管中的固體流量。當超過閾值時，它通過繼電器輸出指示。帶模擬輸出 (4…20 mA) 的版本可以額外指示流量趨勢。
當（氣動）運輸顆粒、粉末、噴砂材料、磨料、灰塵或其他固體時，可以立即安全地識別儲罐底部的堵塞、空料斗、鼠洞或產品橋。
測量原理基于檢測移動電荷，這些電荷自然粘附在固體表面，例如通過軟管壁上的摩擦產生。只有移動的粒子才會產生信號。
軟管簡單地穿過儀器（T 型）并用軟管接頭擰緊。在使用導電軟管的應用中，或者在必須切割軟管進行安裝的情況下
，使用 E 型。此處軟管從兩側插入軟管接頭。
柔性軟管中散裝固體的流量監測
? 積分測量和趨勢輸出
? 簡單的流程整合
? 適用于導電和非導電軟管
? 在氣力輸送和自由落體
The flow switch DYNAguard S is used to monitor the flow of solids in flexible hoses. It indicates through a relay output when a threshold is exceeded. The version with analogue output (4…20 mA) can additionally indicate a flow trend.
When granulates, powders, blasting material, abrasives, dust or other solids are (pneumatically) transported, blockages, an empty hopper, rat holing or a product-bridge at the bottom of a storage tank can immediately and securely be recognized.
The measurement principle is based on the detection of moving electrical charges which naturally adhere to the solids surface and are produced e.g. through friction on the hose-wall. Only moving particles generate a signal.
The hose is simply passed through the instrument (version T) and is tightened with the hose fittings. In applications with conductive hoses, or in cases where the
hose must be cut for installation, the version E is used. Here the hose is plugged into hose fittings from two sides.
Flow monitoring of bulk solids in flexible hoses
? Integral measurement and trend output
? Easy process integration
? For conductive and non-conductive hoses
? In pneumatic conveying and free fall

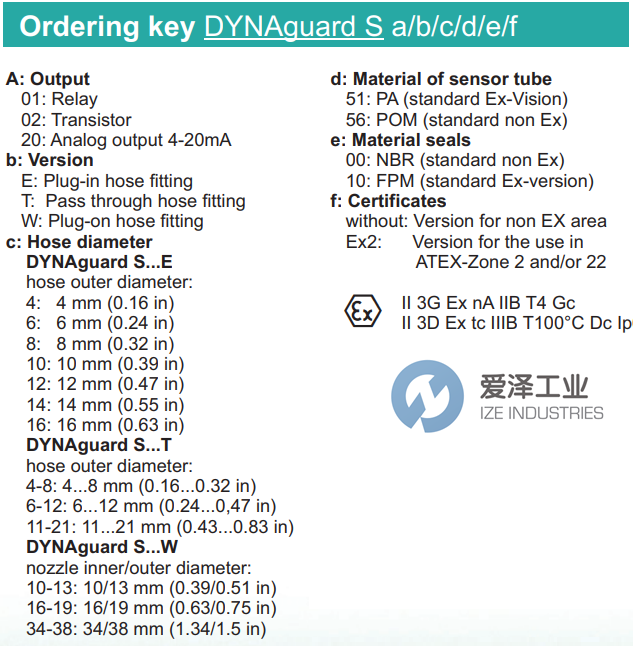

DYNAINSTRUMENTS流量計DYNAguard S系列選型
DYNAINSTRUMENTS流量計DYNAguard S系列其他常用型號：
DYNAINSTRUMENTS DYNAGUARD S20/T/4-8/51/00
DYNAINSTRUMENTS DYNAGUARD S20/T/6-12/51/00
DYNAINSTRUMENTS DYNAGUARD S20/T/11-21/51/00
DYNAINSTRUMENTS DYNAGUARD S20/T/4-8/56/00
DYNAINSTRUMENTS DYNAGUARD S20/T/6-12/56/00
DYNAINSTRUMENTS DYNAGUARD S20/T/11-21/56/00
DYNAINSTRUMENTS DYNAGUARD S20/T/4-8/51/10
DYNAINSTRUMENTS DYNAGUARD S20/T/6-12/51/10
DYNAINSTRUMENTS DYNAGUARD S20/T/11-21/51/10
DYNAINSTRUMENTS DYNAGUARD S20/T/4-8/56/10
DYNAINSTRUMENTS DYNAGUARD S20/T/6-12/56/10
DYNAINSTRUMENTS DYNAGUARD S20/T/11-21/56/10
DYNAINSTRUMENTS FLOW SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
