ABB 液位變送器MT5.000.S6.LW.A.C2.V.P12.W10.S6.H0.M7A.Y0.P4.Y.Y規格描述
MT5 |
000 - Device Type : MT5000, Liquid Total Level Transmitter |
S6 - Coupler and Probe Material : 316L Stainless Steel, Standard |
LW - Transmitter Configuration : Local Transmitter with Window Cover Standard |
A - Transmitter Housing : Dual Compartment Aluminum Housing Standard |
C2 - Process Connection / Waveguide Coupler : 1.50 in. NPT Process Connection Coupler Single / Coaxial Probe PTFE Insulator |
V - Process Seal Type : Viton FKM A O-Ring Process Seal |
P12 - Probe Type : Single Flexible Cable Probe 0.25 in. (6 mm) Outer Diameter 200 ft (61 m) Max Standard Length |
W10 - Probe End Attachment : 1.0 in. (25.4mm) O.D., 6.0 in. (152.4 mm) Weight Height, approx. 1.3 lbs (590 g) |
S6 - Probe Attachment Material : 316L Stainless Steel, Standard |
H0 - Process Temperature Extension : Process Temperature 32 °F (0 °C) to 250 °F (121 °C) Standard |
M7A - Electronics Module : One Level, Graphic Display, 4 ... 20 mA Output, HART |
Y0 - Approval : General purpose |
P4 - Process Connection Type : Integral Thread, Standard Process Connection (NOTE: Process connection material must be the same as the coupler material above) |
Y - Process Connection Material : None |
Y - Flange / Plug Size // Rating // Type : None |
Probe Length (from bottom threads or bottom of flange) L=2650 mm |
To verify: |
- Min. Process Temperature |
- Max. Process Temperature |
- Max. Process |
- Dielectric Constant |
- Installation - default: Flat plate, flate plate with coupling |
ABB 液位變送器TM5000系列簡介

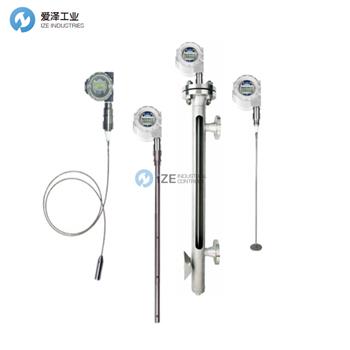

Overview
The MT5000 Series Guided Wave Radar transmitters feature a graphic display incorporated into an all digital electronics module. Using this new format K-TEK has been able to add waveform screens to the modular electronics along with easy to follow multiple choice setup menus. These menus can be changed to many different languages for easy commissioning throughout the world. MT5000 Series Guided Wave Radar transmitters provide superior performance in tough applications. Pulses of microwave energy are directed to the product surface using a rigid rod or flexible cable type probe. This assembly has no moving parts and no loss of energy due to beam divergence. Multiple coupler and probe types are available to accommodate applications such as knock out drums, feed water heaters, production vessels and separators. 316L stainless steel is the standard probe material however materials such as Hastelloy C-276 and Monel are available for use in acidic or caustic services.
概述
MT5000系列導波雷達發射器具有集成到全數字電子模塊中的圖形顯示器。 使用這種新格式，K-TEK 已經能夠?qū)⒉ㄐ纹聊惶砑拥侥K化電子設備以及易于遵循的多選設置菜單。這些菜單可以更改為多種不同的語言，以便在全球范圍內輕松調試。MT5000 系列導波雷達發射器在苛刻的應用中提供卓越的性能。 使用剛性桿或柔性電纜型探頭將微波能量脈沖定向到產品表面。該組件沒有移動部件，也沒有因光束發散而造成的能量損失。 可提供多種耦合器和探頭類型，以適應諸如汽包、給水加熱器、生產容器和分離器等應用。 316L不銹鋼是標準的探頭材料，但是 Hastelloy C-276和Monel等材料可用于酸性或腐蝕性服務。
ABB液位變送器TM5000系列其他常用型號：
ABB MT5.000.S6.LW.A.C2.V.P12.W10.S6.H0.M7A.Y0.P4.Y.Y
ABB Temperature Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ABB液位變送器MT5.000.S6.LW.A.C2.V.P12.W10.S6.H0.M7A.Y0.P4.Y.Y的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ABB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
