GEMS流量開關FS-926系列技術參數
Specifications | |
Wetted Materials | |
Housing | Brass or 316 Stainless Steel |
Piston | |
In Brass Housing | Polysulfone for water; Brass for oil or air |
Stainless Steel Housing | 316 Stainless Steel |
Low Flow Piston (FS-926) | Same as Housing |
Spring | 316 Stainless Steel |
O-Ring | Viton? |
Other Wetted Parts | Epoxy |
Pressure Rating | |
Operating, Maximum | 1000 PSIG (69 bar) |
Proof | 2500 PSIG (172 bar) |
Burst | 5000 PSIG (345 bar) |
Operating Temperature | |
With Brass or S.S. Piston | -20°F to +300°F (-29°C to +148.9°C) |
With Polysulfone Piston | -20°F to +225°F (-29°C to +107.2°C) |
Repeatability | 1% Maximum Deviation |
Set Point Accuracy | ±10% |
Set Point Differential | 15% Maximum |
Switch | SPDT, 20 VA |
Inlet/Outlet Ports | 1/4? NPT |
Electrical Termination | No. 18 AWG, 24? L., Polymeric Lead Wires |

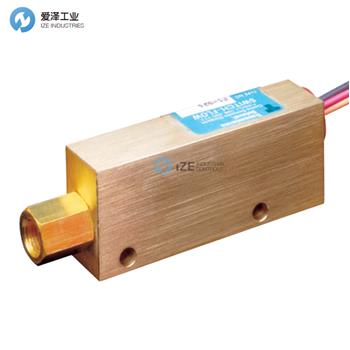

GEMS流量開關FS-926系列介紹
FS-926 系列流量開關專為液體或氣體而設計，具有特殊的低流量活塞。這個額外的活塞允許檢測低至 50 cc/min 的流體流量。FS-926 開關非常適合氣體采樣、液體或氣體泄漏檢測或化學品注入等應用。這些開關可在以下應用中準確檢測流量過大或不足：防止液壓系統中的流體流量損失、確保半導體加工設備中的適當冷卻劑流量、監控高壓潤滑系統以及確保水/廢物中適當?shù)目諝饬鲃?dòng)系統。
? 流速設置：液體 - 50-300 cc/min。
? 端口尺寸：1/4" NPT
? 主要結構材料：黃銅或不銹鋼
? 設置類型：固定
FS-926 Series Flow Switches are designed for liquids or gases and features a special low-flow piston. This additional piston allows the detection of fluid flow as low as 50 cc/min. FS-926 switches are ideal for applications such as gas sampling, liquid or gas leak detection, or chemical injection. These switches provide accurate detection of excessive or insufficient flow rates in such applications as: protecting against loss of fluid flow in hydraulic systems, assuring proper coolant flow in semiconductor processing equipment, monitoring high pressure lubrication systems, and ensuring proper air flow in water/waste systems.
? Flow Rate Settings: Liquids - 50-300 cc/min.
? Port Size: 1/4" NPT
? Primary Construction Material: Brass or Stainless Steel
? Setting Type: Fixed
GEMS流量開關FS-926系列其他常用型號：
GEMS FS-926 26951
GEMS FS-926 26952
GEMS FS-926 26953
GEMS FS-926 26954
GEMS FS-926 26955
GEMS FS-926 26956
GEMS FS-926 26938
GEMS FS-926 26939
GEMS FS-926 26941
GEMS FS-926 26942
GEMS FS-926 26943
GEMS FS-926 26944
GEMS FS-926 47020
GEMS FLOW SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GEMS流量開關FS-926 47020的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GEMS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GEMS流量開關FS-926系列FS-926 47020技術參數及介紹
