FOLOLO傳感器WIO10系列技術參數

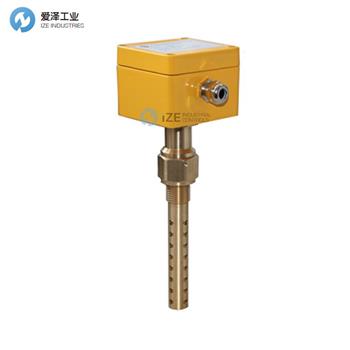

WIO10 Series Side-mounted Water in oil Controller
Characteristics: Accurate and reliable capacitive measurement. Measuring the percentage of water in oil as low as 1%. Smart: with analogue output function. The surface of probe is isolated, can avoid the accidental alarm of little water soaking, two pairs of contacts can be selected. We provide two types for customers: WIO11 integrated type and WIO12 split type. The watch window can be selected.
Profile
WIO10 side-mounted oil in water controller is based on capacitive measuring principle, it is accurate and reliable, and the detecting ratio of oil mixing in water is under 1%. WIO10 side-mounted oil in water controller can be used widely for monitoring the water content in a variety of oil. To measure accurately, for static oil, it must be installed in the bottom of the container. The WIO10 series include WIO11 integrated type and WIO12 type. The probe of WIO12 doesn’t need to be dismantled during usage, it makes convenience for the maintain and replacement of controller.
WIO oil in water controller is based on the principle that capacitance is linear changing with the change of the electric inductivity when the capacitance is not change in other conditions but the electric inductivity between two poles changes. The capacitance two poles of the controller is composed by probe case and inner core, which can be seen in figure 1. When the oil mixing with water between two poles the electric inductivity will be changed, which will cause the capacitance changing, the proportion of oil mixing with water is set by microcircuit, when the proportion up to the setting value, the controller will export alarm contact signal.
WIO10系列側裝式油包水控制器
特點：準確可靠的電容測量。 測量油中水的百分比低至 1%。 智能：具有模擬量輸出功能。 探頭表面隔離，可避免微水浸入誤報警，可選擇兩對觸點。 為客戶提供兩種類型：WIO11一體式和WIO12分體式。 可以選擇監視窗口。
輪廓
WIO10側裝式水包油控制器基于電容式測量原理，準確可靠，水中混油檢測率低于1%。 WIO10側裝式油水控制器可廣泛用于監測各種油品中的水分含量。 為準確測量，對于靜電油，必須安裝在容器底部。 WIO10系列包括WIO11一體型和WIO12型。 WIO12的探頭在使用過程中無需拆卸，方便了控制器的維護和更換。
WIO水包油控制器是基于在其他條件下電容不變但兩極之間的電感發生變化時，電容隨電感的變化呈線性變化的原理。 控制器的電容兩極由探頭外殼和內芯組成，如圖1所示。當油與水在兩極之間混合時，電感會發生變化，從而導致電容發生變化，比例 油水混合由微電路設定，當比例達到設定值時，控制器輸出報警接點信號。
FOLOLO傳感器其他常用型號：
FOLOLO WIO-HW-P110U5-2ED
FOLOLO WIO-HW-T109U5/2ED
FOLOLO WIO-P11OU1
FOLOLO SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
