ELTEX張力監控器14600技術參數介紹
Technical Features: | |
Supply voltage: | 9–14 V DC |
Maximum current consumption: | 50 mA (typical value 32 mA) |
Maximum current, stop output: | 300 mA (NPN open collector) |
Maximum voltage at stop output (relay coil): | 30 V DC |
Speed range: | 80–10 000 RPM |
Maximum voltage at Synchronization input: | 30 V DC. Vinlow: 0–1.2 V |
Vinhigh: | 6.0–30 V |
Working ambient temperature range: | 15–45°C (60–110°F) |
Stop pulse length: | 2 seconds |
Cable length between sensor head end electronics box: | 100 mm (50–500 mm on request) |
Electronic box dimensions (width x height x depth): | 115 x 61 x 25 mm |
Sensor head dimensions (width x height x depth): | 25 x 42 x 29 mm |
ELTEX張力監控器14600產品介紹

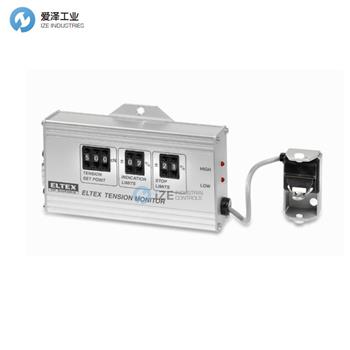

Eltex Tension Monitor
Sewing machine ETM model 14600
The Eltex Tension Monitor (ETM) is an on-line device for sewing machines
and similar applications. The device monitors the thread tension and also acts as a
thread break detector. It enables the operator to keep the thread tension within the
desired tension range for best operation and quality of the seam.
The ETM indicates, with LED’s, if the thread tension is outside the selected Indication
Limits. If the thread tension goes outside the selected Stop Limits, the ETM will
generate a stop signal to the machine.
Features:
? Monitors thread tension according to selected Indication Limits.
? Generates stop pulse when thread tension is outside the selected Stop Limits.
? Separate sensor head and electronics enables fitting in tight areas.
? Easy setting and clear readings through standard code switches.
? LED indication at Synchronization input.
? Open collector stop output allows different power sources for stop relay.
? Factory calibrated – no manual reset.
? ESD protected inputs and outputs.
? Standard 9-pole D-sub connector.
Eltex 張力監控器
縫紉機 ETM 型號 14600
Eltex 張力監控器 (ETM) 是縫紉機的在線設備
和類似的應用程序。 該設備監控線張力，也可作為
斷線檢測器。 它使操作員能夠?qū)⒕€(xiàn)張力保持在
最佳操作和接縫質量所需的張力范圍。
ETM 通過 LED 指示線張力是否超出所選指示范圍
限制。 如果線張力超出選定的停止限制，ETM 將
向機器發出停止信號。
特征：
? 根據選定的指示限值監控線張力。
? 當線張力超出選定的停止限制時生成停止脈沖。
? 獨立的傳感器頭和電子元件可以安裝在狹小的區域。
? 通過標準代碼開關輕松設置和清晰讀數。
? 同步輸入端的LED 指示。
? 集電極開路停止輸出允許停止繼電器使用不同的電源。
? 工廠校準——無需手動重置。
? ESD 保護輸入和輸出。
? 標準9 極D-sub 連接器。
ELTEX張力監控器其他常用型號：
Eltex 14600
Eltex 14604
Eltex 14606
ELTEX tension monitor NEW + ORIGINAL+ ONE YEAR WARRANTY
