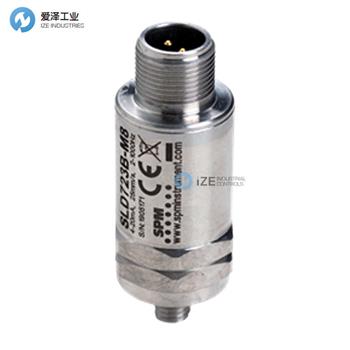

SPM振動變送器SLD723技術參數
Part number | SLD723 |
Mounting thread | M8 tapped hole for mounting stud |
Connection | TB, TCP |
Frequency range | 2-1000 Hz |
Sensitivity | 0-25 mm/s |
SPM振動變送器SLD系列介紹
變送器在其頻率范圍內提供與振動速度成比例的 4-20 mA 輸出信號。輸出信號可以傳輸?shù)匠Ｒ姷倪^程控制系統，如 PLC、DCS 和 SCADA。變送器使用來自任何標準 4-20 mA 回路的電源運行。不需要額外的電源。
變送器的特點是獨特的微控制器設計和存儲在傳感器中的校準數據。所有變送器都配有頂部連接器，可快速輕松地安裝。
技術概覽
SPM的振動變送器具有多種尺寸、配置和規格，可滿足需求。 所有變送器都是內部隔離的，工作溫度范圍為? 40 至 +85 °C（? 40 至 +185 °F）。頻率范圍是為永久安裝的變送器指定的。使用磁腳時，測量結果會在較高頻率下受到影響。
連接備選方案：
TB = 2 針連接器 MIL-C-5015
TCP = 帶保護管適配器的集成電纜（3、5、10 或 20 m）
The transmitters provide a 4-20 mA output signal proportional to the vibration velocity, across its frequency range. The output signal can be transmitted to common process control systems like PLC, DCS, and SCADA. The transmitters operate using power from any standard 4-20 mA loop. No additional power is necessary.
Features of the transmitters are unique microcontroller design and calibration data stored in the sensor. All transmitters come with a top connector for fast and easy installation.
Technical overview
SPM vibration transmitters come in a variety of sizes, configurations, and specifications to match your needs. All transmitters are internally isolated and have an operating temperature range of ?40 to +85 °C (?40 to +185 °F). The frequency range is specified for the transmitter when permanently installed. The measuring results will be affected at higher frequencies when using a magnetic foot.
Connection alternatives:
TB = 2-pin connector MIL-C-5015
TCP = Integral cable (3, 5, 10, or 20 m) with an adapter for protection tube
SPM振動變送器SLD系列其他常用型號：
SPM SLD722
SPM SLD723
SPM SLD724
SPM SLD732
SPM SLD733
SPM SLD734
SPM SLD822
SPM SLD823
SPM SLD824
SPM SLD 832
SPM SLD723TCP-5
SPM Vibration transmitters NEW + ORIGINAL+ ONE YEAR WARRANTY
