NOVOTECHNIK傳感器RSC28..11系列技術參數

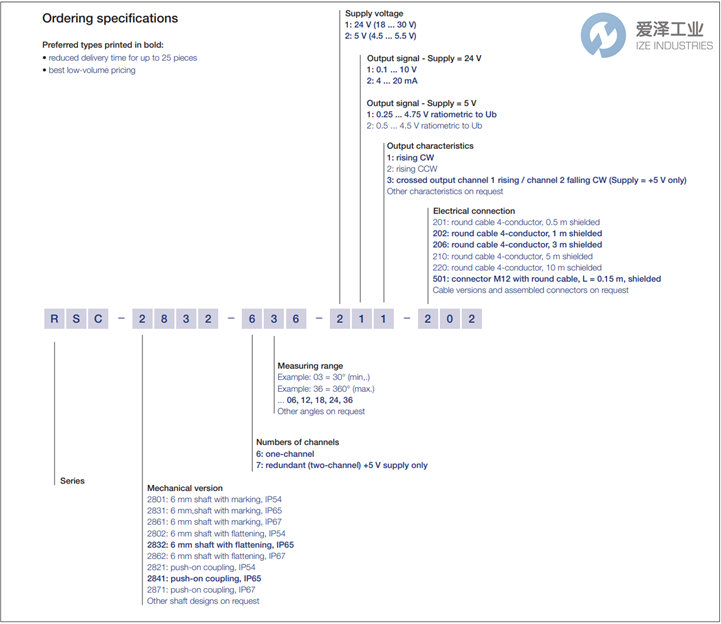

Type designations | RSC - 28 _ _ - _ _ _ - 1 1 _ - _ _ _ analog voltage |
Mechanical Data | |
Mounting | 2 screws M4 and washer |
Starting torque of mounting screws with washer at housing flange | 180 Ncm |
Mechanical travel | 360 continuous ° |
Permitted shaft loading (axial and radial) static or dynamic force | 20 N |
Torque | 1.0 (IP67); 0.5 (IP65); 0.15 (IP54) Ncm |
Maximum operational speed | 800 (120, if T > 85°C) min-1 |
Weight | ~ 50 g |
Electrical Data | |
Supply voltage Ub 5 | 24 (18 ... 30) VDC |
Current consumption (w/o load) | typical 15 (typ. 8 on request) per channel mA |
Reverse voltage | yes, supply line |
Short circuit protection | yes (vs. GND and supplyy) |
Measuring range | 0 to 30° up to 0 to 360, oprogrammed in 10° steps ° |
Number of channels | 1 |
Update rate | typ.5 kHz |
Resolution | 12 bit |
Repeatability | 0.1 ° |
Hysteresis | <0.1 ° |
Independent linearity | ≤0.5 ± % FS |
Output signal | 0.1...10 VDC |
Temperature error at measuring range 30 up to 170° | 0.94 ± % FS |
Insulation resistance (500 VDC) | > 10 MΩ |
Cross-section cable | AWG 26, 0.14 |
Environmental Data | |
Temperature range | -40...+85 (generally -25...+85 with M12 connector) °C |
Vibration (IEC 60068-2-6) | 5...2000 Hz |
Shock (IEC 60068-2-27) | 50 (6 ms) g |
Life | > 50x106 movements |
MTTF (DIN EN ISO 13849-1 parts count method, w/o load) | 107 years |
Functional Safety | When using our products in safety-related systems, please contact us |
Protection class (DIN EN 60529) | IP54 / IP65 / IP67 |
EMC compatibility | EN 61000-4-2 electrostatic discharges (ESD) 4 kV, 8 kV |

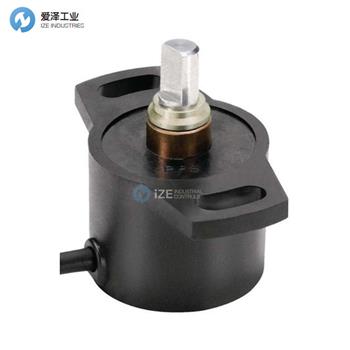

NOVOTECHNIK傳感器RSC2800系列介紹
RSC 2800 傳感器利用非接觸式磁測量技術來確定測量角度。 與傳統的霍爾傳感器不同，它測量磁場的方向。 輸出可以是模擬電壓或電流。
外殼由特殊的高級耐溫塑料材料制成。細長的槽使安裝簡單，并且易于機械調整。
提供三種軸選件，包括可確?？焖俸唵伟惭b的推入式聯軸器選件。 換能器對灰塵或濕度不敏感。
通過密封在外殼中的屏蔽電纜進行電氣連接。 M12 連接器作為選件提供。
特殊功能
? 非接觸技術
? 角度范圍從 30° 到 360°
? 內部分辨率 12 位
? 獨立線性度 ±0.5 %
? 防護等級IP54、IP65、IP67
? 使用壽命長
? 滯后非常小
? 單輸出和冗余版本
? 可提供推入式聯軸器或標記軸
? 安裝簡單
The RSC 2800 sensor utilizes a contactless magnetic measurement technology to determine the measured angle. Unlike conventional Hall sensors, the orientation of the magnetic field is measured. The output is available as either analog voltage or current.
The housing is made of a special high grade temperatureresistant plastic material. Elongated slots allow simplicity in mounting together with ease of mechanical adjustment.
Three shaft options are available, including a push-on coupling option that ensures fast and simple installation. The transducer is not sensitive to either dirt or humidity.
Electrical connection is made via a shielded cable which is sealed into the housing. An M12 connector is available as an option.
Special features
? non-contacting technology
? angular range from 30° to full 360°
? internal resolution 12 bit
? independent linearity ±0.5 %
? protection class IP54, IP65, IP67
? long life
? very small hysteresis
? single output and redundant versions
? available with push-on coupling or marked shaft
? simple mounting
NOVOTECHNIK傳感器RSC2800系列選型
NOVOTECHNIK傳感器RSC2800系列其他常用型號：
NOVOTECHNIK RSC 2831-610-906-906
NOVOTECHNIK RSC 2831-609-111-201
NOVOTECHNIK RSC 2832-636-111-202
NOVOTECHNIK RSC 2801-603-112-201
NOVOTECHNIK RSC 2801-606-112-201
NOVOTECHNIK RSC 2831-636-111-201
NOVOTECHNIK Rotary Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
