WOERNER液位開關KFH系列技術參數
General | |
Operating pressure max: | 1 bar |
Temperature range: | 0...90 °C |
Mounting position: | vertical ± 10 ° |
Material | |
Tube at standard version: | copper alloy |
Tube at version V: | 1.4301 |
Float: | polyurethane |
Flange: | aluminium alloy |
Seal: | NBR |
Protection type: | IP 65 |
Plug-and-socket connection: | DIN 43650 |
Reed Contacts | |
Switching voltage: | 10...230 VUC |
Switching current max.: | 0,5A |
Switching capacity max.: | 10/30 W/VA |

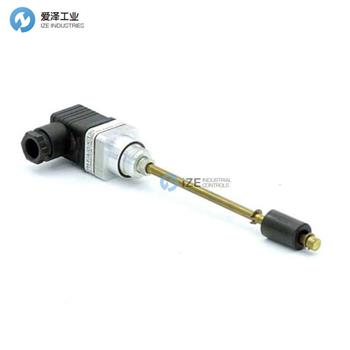

WOERNER液位開關KFH系列介紹
適用于最小的安裝條件
許多安裝變體
各種開關功能
無電位觸點
具有高開關數據的觸點
可應要求提供由不銹鋼制成的滑動管
For smallest mounting conditions
Many mounting variants
Various switching functions
Potential-free contacts
Contacts with high switching data
Sliding tube made of stainless steel by request

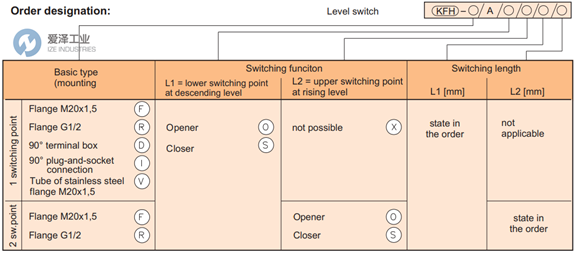

WOERNER液位開關KFH系列選型
WOERNER液位開關KFH系列其他常用型號：
WOERNER KFH-R/A/0/S250/150
WOERNER KFH-F/A/O/X/800
WOERNER KFH-F/A/S/X/70
WOERNER KFH-R/A/0/0/250/150
WOERNER KFH-F/A/0/X/170
WOERNER KFH-F/A/S/X/70
WOERNER KFH-F/A/O/S/220/130
WOERNER KFH-F/A/S/S/350/250
WOERNER KFH-F/A/O/X/220
WOERNER KFH-F/A/0/X/120
WOERNER KFH-F/A/O/X/150
WOERNER Level Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WOERNER液位開關KFH-F/A/O/X/150的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WOERNER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
WOERNER液位開關KFH系列KFH-F/A/O/X/150技術參數及選型
