CAL溫度控制器CAL3300系列技術參數
Specification | |
Product Category: | Single Loop controller |
Dimensions and size: | 24mm x 48mm x 107mm (HxWxD), 1/32 DIN |
Primary Input Type: | Thermocouple: B, E, J, K, L, N, R, S, T. PT100 : 2 wire. Linear: 0 to 50mV |
Other Inputs: | None |
Output Function: | Heat, Cool, Alarm |
Output Type: | Relay (rly1 2A, rly2 1A resistive load), SSd ( 5Vdc +0/-15% 15mA non-isolated) |
Max. Number of Outputs: | 2 |
Control Type: | PID heat only, PID heat cool , ON/OFF |
Power Supply: | 100–240Vac, 50–60Hz +/- 10% maximum permitted fluctuation, 12V - 24V (AC/DC) +/-20% 4.5 VA Polarity not required |
Communications: | RS232 & RS485 Modbus RTU |
Panel Sealing: | IP66 |
Certifications: | CE, UL, CSA |
Other Functions: | dAC (derivative approach control), Single ramp soak |
Software Tools: | CALgrafix – configuration and datalogging software |
CAL溫度控制器CAL3300系列介紹及選型

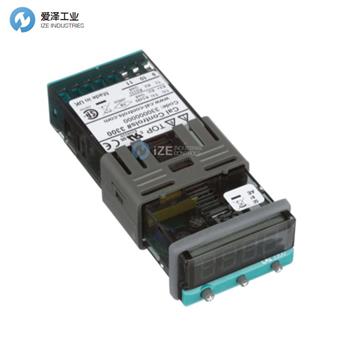

300 1/32 DIN Single Loop Temperature Controller
Single Loop Controller - 3300
The CAL 3300 1/32DIN temperature controller is designed to be easy-to-use and reliable within the most demanding process and manufacturing applications.
Designed for industrial or scientific applications CAL3300 has an impact resistant smoked fascia with rubberised buttons with positive feedback. PID tuning is simple and efficient whilst the unique dAC function minimises overshoot
Benefits & Features
1 x 4 digit LED display with 2 outputs LED
Easy-to-use autotuning
Simple menu-driven configuration
Single ramp/soak (dwell) program
IP66 protection
CALgrafix datalogging software
300 1/32 DIN 單回路溫度控制器
單回路控制器 - 3300
CAL 3300 1/32DIN 溫度控制器旨在在最苛刻的過程和制造應用中易于使用且可靠。
CAL3300 專為工業或科學應用而設計，具有耐沖擊的煙熏面板，帶有帶正反饋的橡膠按鈕。 PID 調整簡單高效，同時獨特的 dAC 功能最大限度地減少了超調
優點和特點
1 x 4 位 LED 顯示屏，帶 2 個輸出 LED
易于使用的自動調整
簡單的菜單驅動配置
單一斜坡/浸泡（停留）程序
IP66防護等級
CALgrafix 數據記錄軟件

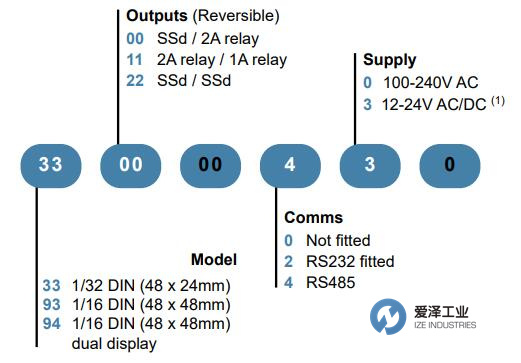

CAL溫度控制器其他常用型號：
CAL CAL330000000
CAL CAL330000430
