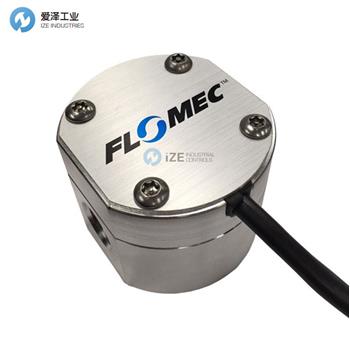

FLOMEC流量計EGM015A001-811技術參數
PRODUCT IDENTIFIER | EGM015 = 1/2" (15 mm) 0.26 - 10.6 GPM (1-40 L/min) |
MATERIALS | A00 = Aluminum / PPS / No bearing (EGM008-020) |
O-RING MATERIALS | 1 = Viton (5°F min. [-15°C]) |
TEMPERATURE | 8 = 176°F (80°C) max |
PROCESS CONNECTION | 1 = BSPP (G) female threaded (ISO 228) |
INTEGRAL OPTIONS | 1 = Hall effect output with one point calibration and K-Factor (2 m cable)^* |
FLOMEC流量計EGM系列介紹
EGM-SERIES ELECTRONIC FLOWMETER
All EGM-Series pulse meters are designed for volumetric flow measurement of clean liquids across a broad range of applications in the automotive, aviation, mining, power, chemical, pharmaceutical, and petroleum industries. The EGM-Series will produce accurate and reliable measurements of almost all clean liquids, including but not limited to; alcohols, fuels and oils, water based salts and solutions, corrosion inhibitors, brake and transmission fluids, greases, emulsifiers, adhesives, insecticides, and some aggressive chemicals.
FEATURES / BENEFITS
? Oval Gear technology for high accuracy and repeatability
? Direct volumetric measurement of flow
? Accuracy of reading is not affected by temperature and viscosity changes
? Measures high and low viscosity liquids
? Only two moving parts
? "Fuel Consumption" option can tolerate flow pulsations and has a built-in temperature sensor to correct for the fuel density changes
GENERAL SPECIFICATIONS
? Flow rates: 0.26 GPH - 21.1 GPM (1 L/hr - 80 L/min)
? Sizes: 1/8" - 3/4" (4 mm - 20 mm)
? Temperature range: 5°F - +176°F (-15°C - +80°C)
CALIBRATION
EGM-Series flowmeters are available with factory calibrations or can be calibrated in the field as an economical option.
FUEL CONSUMPTION
EGM-Series flowmeters with the Fuel Consumption option (Integral Option 2) are equipped with an integral PT100 temperature sensor which allows for accurate measurement of fuel consumption on combustion engines by correcting for temperature differences from the inlet to outlet of the engine. It also includes the Pulsating Flow electronics that eliminate the effect of pulsations in the flow.
EGM系列電子流量計
所有 EGM 系列脈沖流量計專為清潔液體的體積流量測量而設計，廣泛應用于汽車、航空、采礦、電力、化工、制藥和石油行業。 EGM 系列將對幾乎所有清潔液體進行準確可靠的測量，包括但不限于： 酒精、燃料和油、水基鹽和溶液、腐蝕抑制劑、制動液和傳動液、油脂、乳化劑、粘合劑、殺蟲劑和一些腐蝕性化學品。
特點與優勢
? 高精度和可重復性的橢圓齒輪技術
? 流量的直接體積測量
? 讀數的準確性不受溫度和粘度變化的影響
? 測量高粘度和低粘度液體
? 只有兩個移動部件
? “燃料消耗”選項可以承受流量脈動，并具有內置溫度傳感器以校正燃料密度變化
一般規格
? 流速：0.26 GPH - 21.1 GPM（1 L/hr - 80 L/min）
? 尺寸：1/8" - 3/4" (4 mm - 20 mm)
? 溫度范圍：5°F - +176°F (-15°C - +80°C)
校準
EGM 系列流量計可提供工廠校準，也可以作為經濟的選擇在現場進行校準。
燃油消耗
帶有燃油消耗選項（集成選項 2）的 EGM 系列流量計配備了一個集成的 PT100 溫度傳感器，可以通過校正發動機入口到出口的溫差來準確測量?jī)?nèi)燃機的燃油消耗。 它還包括脈動流電子設備，可消除流量脈動的影響。
FLOMEC流量計EGM系列其他常用型號：
FLOMEC EGM015A511-811
FLOMEC EGM004
FLOMEC EGM006
FLOMEC EGM008
FLOMEC EGM015
FLOMEC EGM020
FLOMEC EGM015A001-811
