WADECO傳感器MWS-24TX系列介紹
Specifications | Transmitter |
Type | MWS- 24TX |
*Power supply | AC100 ~ 120V or AC200 ~ 240V +10%, 50/60Hz |
**Operating distance | 40m |
Frequency and transmission power | Approx.24GHz, less than 10mW |
Radiation angle | Approx. +12° (angle in half of receiving value) |
Delay time from power on to function | Approx.1sec. |
Power consumption | 2VA |
Noise tolerance | Square wave noise from noise simulator，土+1.5KV, with the frequency of the power supply in the 0° ~ 360° phase. |
Operating ambient temperature | -10°C ~ +55°C |
Non-function ambient temperature | -20°C ~ +70°C |
Vibration resistance | 10 ~ 55Hz, 0.75mm single amplitude in X, Y and Z directions, for 2 hours each. |
Enclosure construction | Splash-proof construction Flange : Diecast zinc Case : Diecast aluminum |
Color | Toupe |
Weight | 2.2kg |
WADECO傳感器MWS-24TX/RX系列介紹

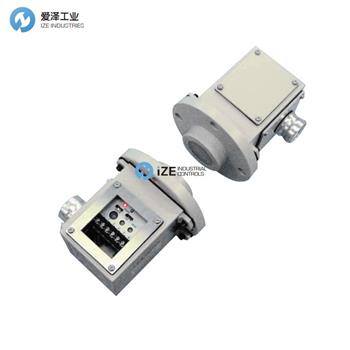

The MWS-24TX/RX type microwave sensor is a Level Switch which consists of a transmitter (MWS-24TX) and a receiver (MWS-24RX), installed face to face. The transmitter unit transmits a microwave beam which is received at the receiver unit. An output relay is released when the beam is obstructed.
The sensor has wide application across all areas of industry where highly reliable, non-contact level detection is required. The sensor is generally used for process control by monitoring presence/absence of product, flow/no flow conditions and point level detection in bins and silos. The sensor may also be used as a proximity switch for detection of vehicles such as dump trucks and rail cars.
MWS-24TX/RX 型微波傳感器是由發射器（MWS-24TX）和接收器（MWS-24RX）面對面安裝的液位開關。 發射器單元發射在接收器單元處接收的微波束。 當光束被阻擋時，輸出繼電器被釋放。
該傳感器廣泛應用于需要高度可靠、非接觸式液位檢測的所有工業領域。 該傳感器通常用于過程控制，通過監控產品的存在/不存在、流量/無流量條件以及料倉和筒倉中的點液位檢測。 該傳感器也可用作檢測自卸卡車和軌道車等車輛的接近開關。
WADECO傳感器常用備件型號：
WADECO MWS-ST-11
WADECO MWS-SR-11
WADECO MWS-ST-2
WADECO MWS-SR-2
WADECO MWS-ST-3-24V
WADECO MWS-SR-3-24V
WADECO MWS-CTX-1
WADECO MWS-CRX-1
WADECO MWS-24TX
WADECO MWS-24RX
WADECO Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WADECO傳感器MWS-24TX-24V的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
WADECO傳感器MWS-24TX系列MWS-24TX-24V特點及規格
