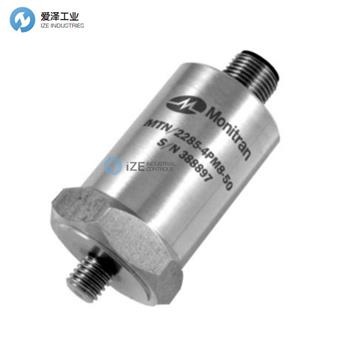

MONITRAN加速度計2285-4P-50技術參數
Technical | |
Output current | 4-20mA DC proportional to rms velocity (mm/s) |
Supply voltage range | 12-32V DC (4-20mA) |
Frequency response | 2Hz to 1kHz ±10% |
Mounted base resonance | 18kHz (nominal) |
Isolation | Electronics in Faraday cage, isolated from body |
Dynamic range | 50g peak |
Transverse sensitivity | Less than 5% |
Operating temperature | -25 to 90°C |
Temperature sensitivity | 0.08%/°C |
Case material | Stainless steel |
Mating connector | MTN/MH008 |
Mounting torque | 8Nm |
Weight | 140g (nominal) |
Sealing | IP67 |
MONITRAN加速度計介紹
General purpose, top-entry velocity transducer with DC output. Made from robust stainless steel throughout or continuous vibration monitoring in harsh environments. Internal electronics are enclosed in a Faraday cage nd isolated to minimise noise. Sealed to IP67 with industry standard two-wire 4-20mA output proportional to ensor range that can connect directly to PLC, DCS and other industrial controllers. Includes 4-pin M12 onnector and is available with a wide range of mountings.
具有直流輸出的通用頂入式速度傳感器。 整體由堅固的不銹鋼制成，或在惡劣環境中進行連續振動監測。 內部電子設備封裝在法拉第籠中并隔離以最大限度地減少噪音。 IP67 密封，具有與傳感器范圍成比例的行業標準兩線 4-20mA 輸出，可直接連接到 PLC、DCS 和其他工業控制器。 包括 4 針 M12 連接器，可提供多種安裝方式。
MONITRAN加速度計MTN系列其他常用型號：
MONITRAN 2285-4P-50
MONITRAN MTN/2285I-2P, 4P, C
MONITRAN MTN/2285-2P, 4P, 4PZ, C
MONITRAN MTN/2285IS-2P, 4P, C
MONITRAN MTN/2285W
MONITRAN MTN/2285IW
MONITRAN MTN/2285ISW
