NEXON壓力變送器PA2000系列技術參數
Specifications | |
Power Supply | |
Current output | 10…30Vdc |
Voltage output | 14…30Vdc |
Current Consumption | |
2-wire | Same as current output(4…20mA) |
3-wire | ≤22mA |
2-wire Current Analog Output | |
Output | 2-wire 4...20mA |
LoadRA(?) | RA≤(US-10)V/0.02A |
Linearity | ≤±0.25% of F.S. |
Voltage Analog Output | |
Output | 2-wire 0...5V |
LoadRA(?) | RA≥5K |
Linearity | ≤±0.25% of F.S. |
Accuracy | ≤±0.25% of F.S. |
Stability(Drift/Year) | ≤±0.2% of F.S. |
Temperature | |
Medium | -40…85℃ |
Ambient | -20…85℃ |
Material | |
Housing | 304 stainless steel |
Wetted Parts | 304 stainless steel |
Protection Class | IP67(M12×1plug |
Wiring method | M12×1plug |
Electrical Connection | G1/4 ED seal with male thread |

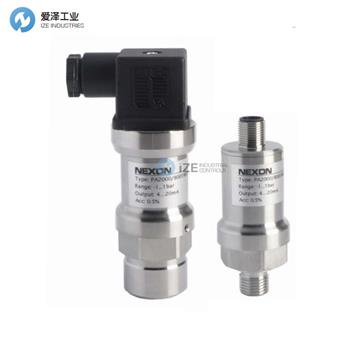

NEXON壓力變送器PA2000系列介紹
PA2000配備擴散硅傳感元件，將測量的壓力轉換為0...20mA/4...20mA/0...5V/1...5V/0...10V 作為輸出。全金屬外殼適合各種工況，多種過程連接使安裝更方便。
擴散硅壓力傳感器和DN27
測量范圍 0…800bar
多種輸出模式可供選擇
304 不銹鋼接液部件
可選耐腐蝕型號
精度 FS 的 0.25%
Equipped with a diffused silicon sensing element, PA2000 converts the measured pressure to 0...20mA/4...20mA/0...5V/1...5V/0...10V as output. All-metal housing makes it suitable for various working conditions while multiple process connections makes installation easier.
Diffused silicon pressure sensor and DN27
Measuring range from 0…800bar
Multiple output modes are available
304 stainless steel wetted parts
Optional corrosion resistant model
Accuracy 0.25% of F.S
NEXON壓力變送器PA2000系列其他常用型號：
NEXON PA2000/8000.25P02/42-SBG14MS
NEXON PA2000/8000.5P02/42-SBG14MS
NEXON PA2000/B001P02/42-SBG14MS
NEXON PA2000/B004P02/42-SBG14MS
NEXON PA2000/B006P02/42-SBG14MS
NEXON PA2000/B010P02/42-SBG14MS
NEXON PA2000/B016P02/42-SBG14MS
NEXON PA2000/B025P02/42-SBG14MS
NEXON PA2000/B040P02/42-SBG14MS
NEXON PA2000/B060P02/42-SBG14MS
NEXON PA2000/B100P02/42-SBG14MS
NEXON PA2000/B160P02/42-SBG14MS
NEXON PA2000/B250P02/42-SBG14MS
NEXON PA2000/B400P02/42-SBG14MS
NEXON PA2000/B600P02/42-SBG14MS
NEXON PA2000/B800P02/42-SBG14MS
NEXON PA2000/B400P03/01-SAG14MH
NEXON PRESSURE TRANSMITTER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NEXON壓力變送器PA2000/B400P03/01-SAG14MH的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NEXON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
NEXON壓力變送器PA2000系列PA2000/B400P03/01-SAG14MH技術參數介紹
